CITY VIEW

The City View Light Point, our innovative urban lighting system, redefines efficiency and sustainability in the illumination of public spaces. Designed with the latest LED technology, this product not only lights up our cities but also drives energy savings and minimizes light pollution.

Efficient and aesthetically integrated, it reduces the clutter of elements in public space and can incorporate scattered elements, optimizing the use of urban space. It significantly contributes to the reduction of the carbon footprint, making it a key choice for a more sustainable and efficient urban environment.

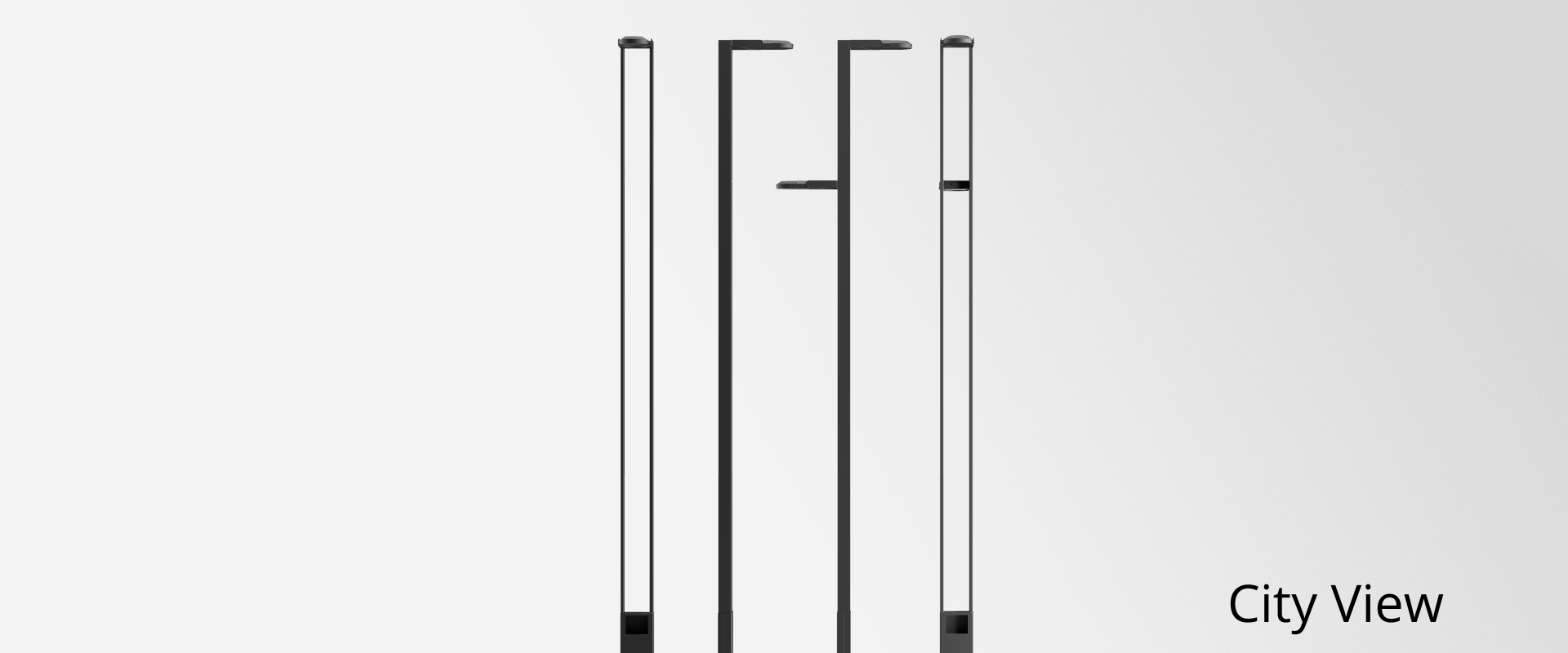

VERSIONS

TECHNICAL SPECIFICATIONS

Materials:

  • Steel Tube S235JR + Galvanised.

Nuts outer and bolts:

  • Stainless steel (AISI304).

Weight:

  • 99,6 / 122,7 Kg.

Height:

  • 4,7m  / 6m.

Anti-Urine Protection / Anti-Graffiti Protection:

  • Powder-coated lacquer paint, oven-dried at 200º.

Predefined luminaire colour:

  • Polyester powder 9005 intense matt textured black.

Corrosion protection:

  • Marine Finish (1.000h) (C5).

Materials:

  • Body: Die-cast aluminium EN AC-44100 with low copper content <0.1%.
  • Enclosure: Tempered 5 mm flat glass.
  • Optics: PAMMA acrylic lenses specially designed for LEDs.
  • External bolts: Stainless steel (AISI304).

Watertightness and impact protection grade:

  • IP66 + IK09.

Installation and maintenance:

  • Tool-free access to the driver from above via top panel.

Energy Efficient:

  • 3.000K: 158 lm/W
  • 2.700K: 134 lm/W
  • 2.200K: 130 lm/W

Real light flux:

  • 1.163 lm – 10.670lm (9 – 78W)

Photometric distributios:

  • Up to 7.

Control

  • Smart Ready: Designed to accommodate external Zhaga base.
  • Future Proof: Complies with Zhaga standard.

Lifespan:

  • L90B10 100.000h (Ta 25ºC).

DIMENSIONS

APPLICATIONS

Residential and pedestrian areas

Shopping areas

Parks, Squares and Gardens

Streets and avenues

 Greenways and Bike lanes

POWERED BY MIKOS S
