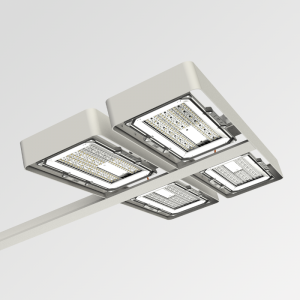

T-XTREME

Carandini’s new T-XTREME luminaire is specially designed to adapt to all types of tunnels and absorb the vibrations of passing vehicles.

It can work at temperatures ranging between -40º and 50º depending on the power chosen and is specially designed to provide correct lighting throughout the life of the project.

It uses Zhaga components to minimize and facilitate maintenance tasks. The driver is accessible from the front and requires no tools.

T-XTREME Versions

T-XTREME S
4,489lm – 23,113lm
(31W – 163W)



T-XTREME M
17,459lm – 38,302lm
(114W – 269W)



T-XTREME L
34,921lm – 74,577lm
(228W – 538W)

TECHNICAL SPECIFICATIONS

Sustainability:

  • Valorisation: 98,26%
  • Maximum carbon footprint per use:
    T-XTREME S: 0,042476 Kg Kw/h
    T-XTREME M: 0,069412 Kg Kw/h
    T-XTREME L: 0,139083 Kg Kw/h

Materials:

  • Side covers:Die-cast aluminium sizes EN AC 44100. Low Cu content <0,15%.
  • Closure tempered flat glass 5mm thick.
  • Optics: Aylic PMMA lenses especially designed for LEDs.
  • Nuts outer and bolts stainless steel (AISI304).

Finish:

  • Slate grey polyester powder paint RAL 7015 textured (7015T).

Type of finish:

  • Standard coating polyester powder (C2-C3 according to ISO 9223-2012).
  • Optional polyester powder coating with anodization (C5-CX according to ISO 9223-2012).

Fixation:

  • TUNNEL-FIX system: for easy installation and alignment of the luminaire in the mounting bracket.
  • Different mounting systems (from top, side, separated box, attached box, etc.)

Watertightness:

According to EN 60529 and EN 60598-1:

  • Degree of tightness of the luminaire IP66.
  • Watertightness degree of the driver compartment (GBOX) IP66.
  • Degree of protection for high pressure water jet IP69K (Luminaire and GBOX).
  • Connector and cable gland IP68 / IP69K.

Impact protection grade:

  • Impact protaction grade IK10 (EN 62262).

Installation and maintenance:

  • Access to gear via side cover, with 4 stainless Allen screws M5.

Weight :

  • S: 7,80 Kg
  • M: 20 Kg
  • L: 30 Kg

Operating temperature:

  • Ta -40ºC to +50ºC.
    According to luminaire configuration.

Lifespan:

  • L90B10 100.000h of  Ta 25ºC.

Galvanic isolation :

  • To prevent galvanic corrosion, incorporates molded technical polymer insulators at the joints of LED and GBOX modules with the metal supports.

Luminaire performance:

  • TXR S:
    4,489lm – 23,113lm
    (31W – 163W)
  • TXR M:
    17,459lm – 38,302lm
    (114W – 269W)
  • TXR L:
    34,921lm – 74,577lm
    (228W – 538W)

LEDs:

  • TXR S: 28 (1 PCB), 56 (2 PCB), 84 (3 PCB).
  • TXR M: 112 (4 PCB), 168 (6 PCB).
  • TXR L: 224 (8 PCB), 280 (10 PCB), 336 (PCB).The LEDs have been welded to the PCB in a zero oxygen atmosphere to considerably increase the sturdiness.

LED color temperature:

  • 4,000K (Neutral White, nw).
  • 3,000K (Warm White, ww).
  • 2,200K (Warm White, ww).
  • Optionally amber color temperature.

ULOR:

  • In testing process.

LED thermal control:

  • Temperature dissipation by the 3 principles of heat transfer (conduction, convection and radiation), through design modularity, body ventilation channels and leveraging the Venturi effect of the tunnel.

Electrical class:

  • Class I (For AC220-240V and AC120-277V driver).
  • Class II (For AC220-240V driver).

Surge protection:

  • Surge protection device (1,2/50) 10 kV
  • Maximum discharge current (8/20) 10 kA
  • Maximum service voltage (L-N) 320 V
  • Maximum service voltage (L/N-GND) 400 V
  • Optional surge protection: 20kA, 20 kV

Voltage / Frequency:

  • AC220V/240V –  50Hz/60Hz
  • Optional AC100V/277V –  50Hz/60Hz

Installation:

  • TXR S can be installed outdoors at any height.
  • TXR M can be installed outdoors at any height, with a connected or separate box. Fixing with adjustable bracket.
  • TXR L can be installed outdoors at any height with separate box. Fixing with adjustable bracket.

Power factor:

  • > 0,9.

Equipment:

  • 1 level (L1N).
  • Mains voltaje dimming (LRC).
  • DALI protocol adjustable (LRD).
  • Dimming a profile adjustable through mains (pulses).
  • Adjustable according to customer (LRTSC).
  • Smart Ready D4i.

Communication Node:

  • NH: Controlux Tunnel LPC (TXR M and TXR L).
  • NL: Controlux Tunnel LPC Lite (TXR S).

Cables:

  • Standard power wire from separate equipment box to LED module: 1m. Optional 2.5m and 5m accessory wires.
CE
RoHS
Retilap
ENEC (2)
MARRUECOS
ENEC
EPD

THE DETAILS MAKE THE DIFFERENCE

ANGLES

+ Precision: alignment every 5° with swivel joint

DETALL 04

New TUNNEL FIX fixing system

DETALL 02

Quick connectors

DETALL 03

 Designed to work between -40º and 50º

WE SHAPE THE LIGHT

We not only design luminaires, we shape the light and create pleasant environments for people.

SME4

SME4

SMM1

SMM1

SCA1

SCA1

SCE6

SCE6

SME2

SME2

SME3

SME3

AME5

AME5

AMM6

ACM4

ACE3

ACE3

ACE4

ACE4

ACM4

ACM4

ALA3

ALA3

APPLICATIONS

Tunnels

Urban Roads

Residential Areas

Car Parks and Pedestrian Areas
