CLAMOD

The Clamod Series is a luminaire manufactured and designed by Carandini for urban environments.

It designed to provide quality lighting for a wide variety of ambient lighting applications.

Thanks to its functional design and the different versions and accessories available, it integrates perfectly into lighting parks, walks, streets and other environmental facilities that require classic luminaires

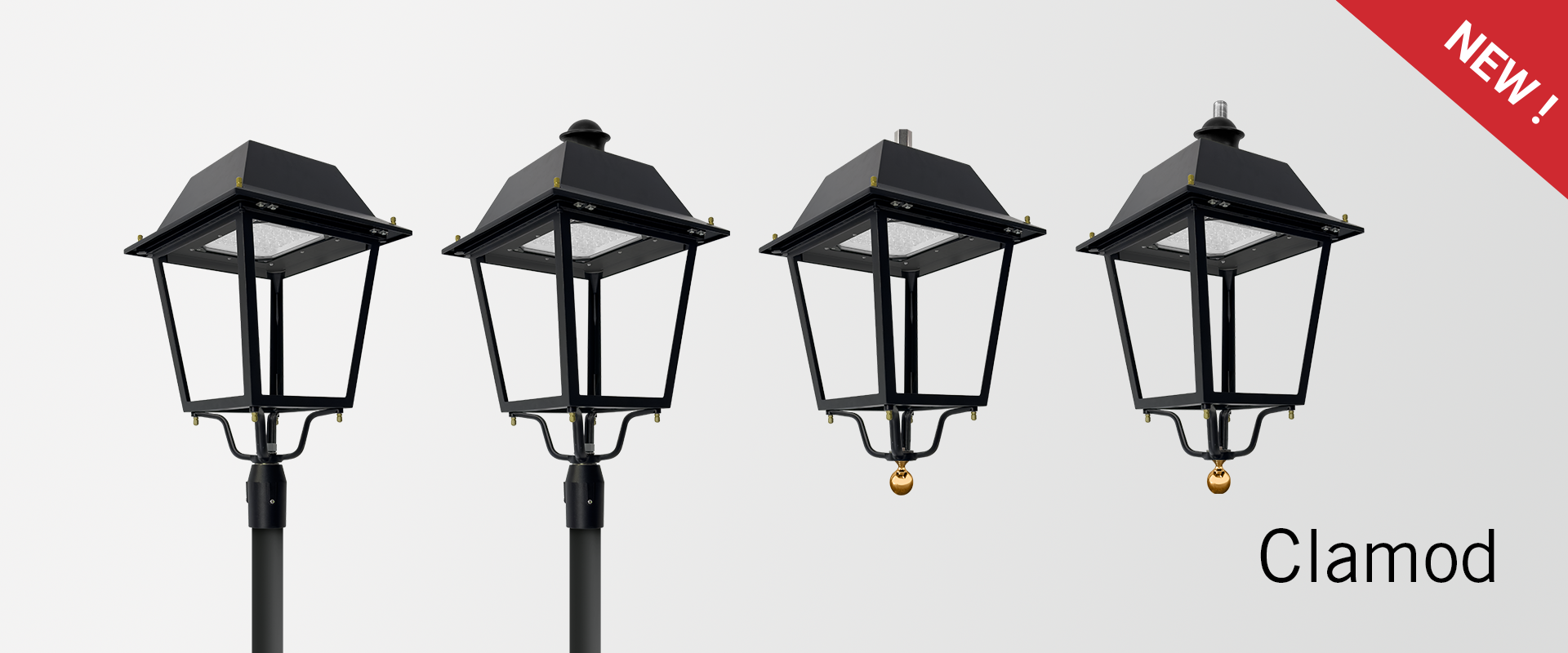

Clamod Versions

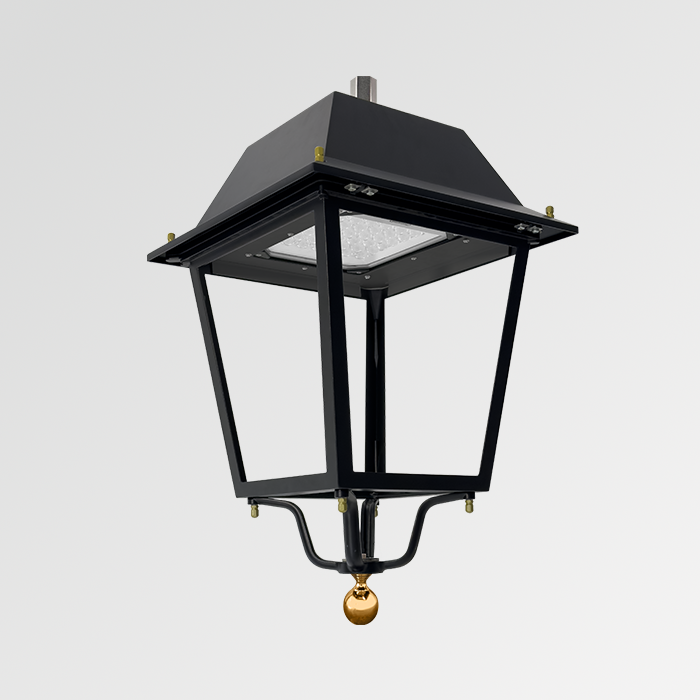

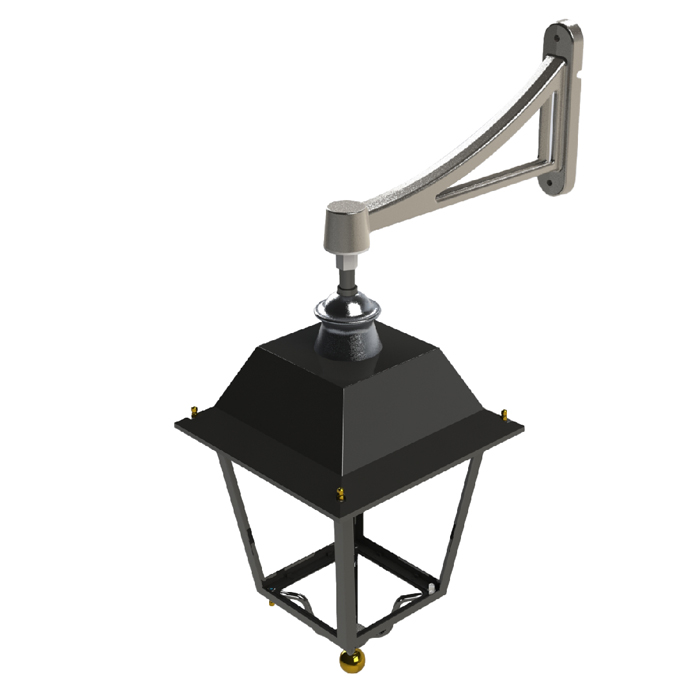

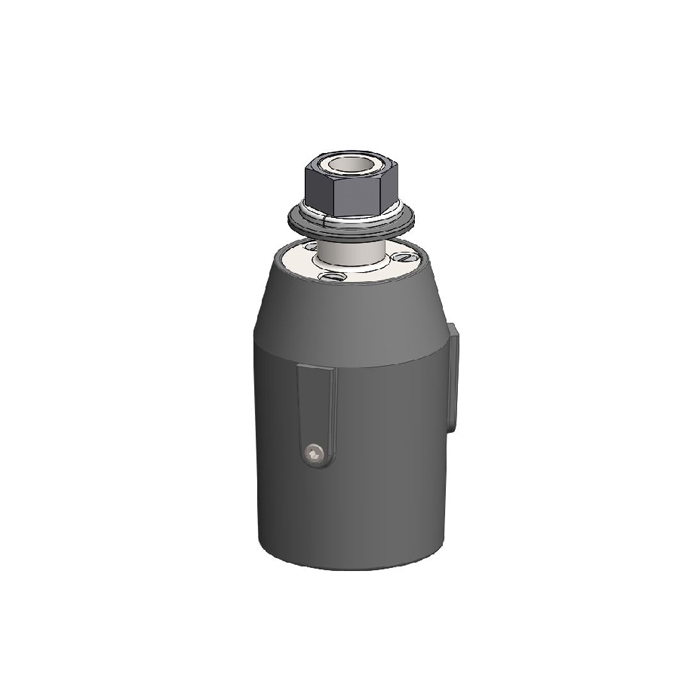

Accessory CBSM-530 with fixations SP3/ SP4/ SP5

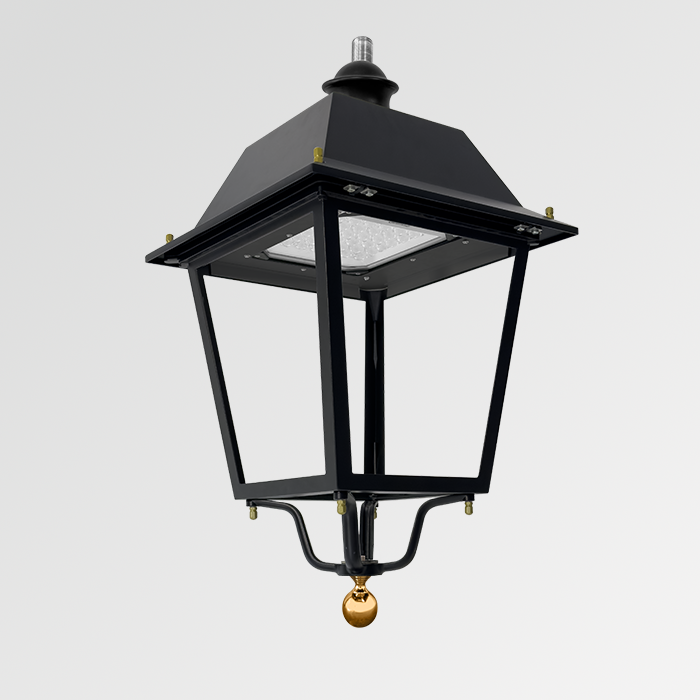

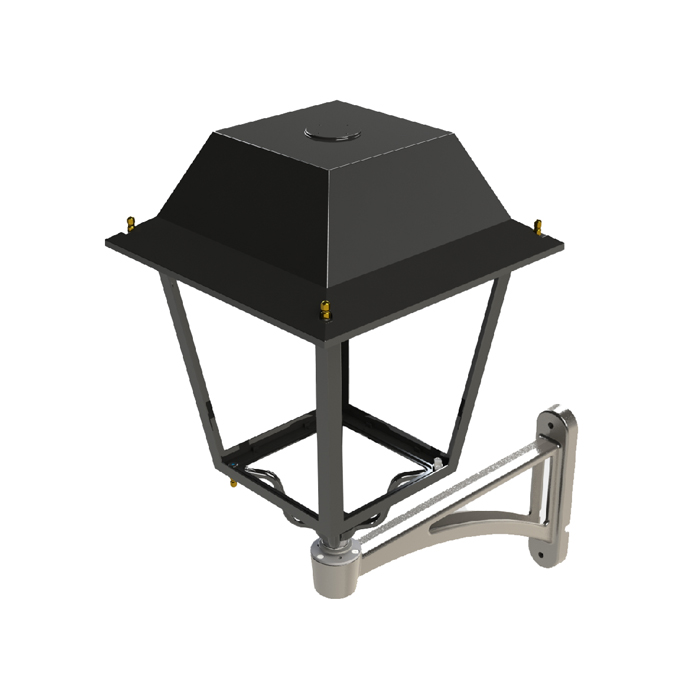

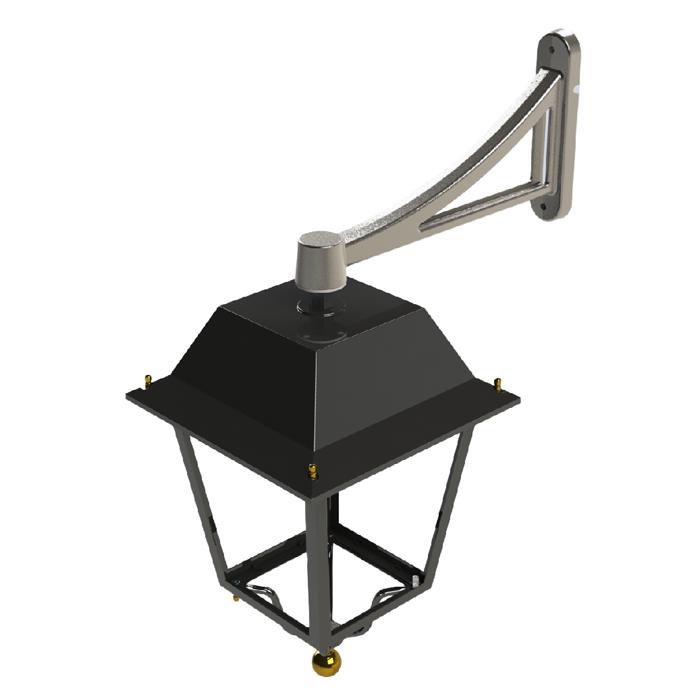

Accessory CBSM-530-H with fixations SPF

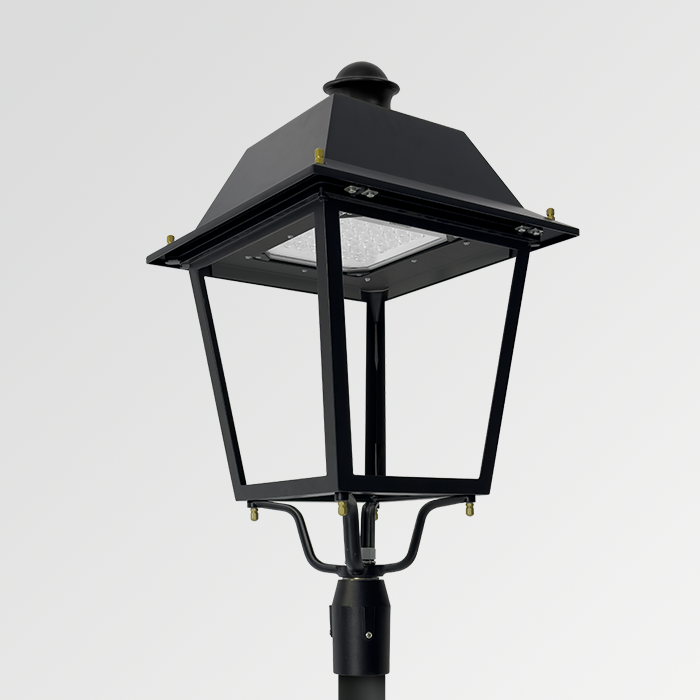

Accessory CBVM-530 with fixations CP3/ CP4/ CPF

CLI
Protective slat

CRS
Top finish

TECHNICAL SPECIFICATIONS

Sustainability:

  • Valorisation: 97,7%.
  • Maximum carbon footprint per use: 0,0212 kg kW/h de CO2.

CE mark:

  • Yes.

ENEC Certificate:

  • Yes.

RoHS-compliant:

  • Yes.

Testing standards:

  • LM 79-80 (all measurements at ISO17025 certified laboratory).

Materials:

  • Housing and dome made of aluminiun injected cast iron EN AC-44100 low copper content <0.1%.
  • Wall mounted in cast aluminium EN AC-44100.
  • Tempered flat glass or lenticular tempered glass.
  • Optics: PMMA polymethylmethacrylate.
  • Nuts outer and bolts: Stainless steel (AISI304).

Finish:

  • Black powder paint RAL 9005 Textured.
  • Marine Finish (1.000h) (Optional).

Watertightness and impact protection grade:

  • IP66.
  • IK09 (EN 62262). (CC) (DC) (OC)
    IK08 (EN 62262). (CG)

Installation and maintenance:

  • Access to the driver from the top through the dome through two screws with Ph head and with fall protection.

Weight with equipment:

  • 8 Kg.

Operating temperature:

  • Ta -40ºC to +50ºC.
    According to luminaire configuration.

Lifespan:

  • L90B10 100.000h of 25ºC.

Wind exposure area:

  •  0,077 to 0,141 m².

Cables:
Built-in cables in all sizes, consult configurator.

Package real light:

  • 1.301 lm – 10.172 lm
    12 W – 80 W
    137 lm/W

LEDs:

  • Incorporate from 16, 24, 32 and 48 LEDs.

LED colour temperature:

  • 4,000K (Neutral White, nw).
  • 3,000K (Warm White, ww).
  • 2,700K (Warm White, ww).
  • 2,200K (Warm White, ww).
  • Optionally amber color temperature.

Index of reproduction chromatic (CRI):

  • CRI>70.
    Other CRI, consult.

ULOR:

  • 0,3%.

Surge protection:

  • Combined discharge voltage (1,2/50) 10 kV
  • Maximum discharge current (8/20) 10 kA
  • Maximum service voltage (L-N) 320 V
  • Maximum service voltage (L/N-GND) 400 V
  • Optional surge protection: 20kA, 20 kV

Electrical class:

  • Class I or Class II.

Harmonic distortion:

  • <10%.

Power factor:

  • > 0,9.

Voltage / Frequency:

  • 220V – 240V / 50Hz – 60Hz.
  • 120V – 277V / 50Hz – 60Hz.

Equipment:

  • LED 1N
  • Adjustable LED in head
  • Adjustable LED Protocol DALI
  • Adjustable LED Protocol 1 – 10V
  • Pulse adjustable LED
  • Dual level
  • Smart Ready D4i

Autonomous regulation:

  • 50% of the 24: 00h at 6: 00h.
  • 60% of the 24: 00h at 6: 00h.
  • 70% of the 24: 00h at 6: 00h.
  • Programming according to client.

CLO regulation:

  • 70% luminous flux throughout the life of the luminaire.
  • 80% luminous flux throughout the life of the luminaire.
  • 90% luminous flux throughout the life of the luminaire.

Socket:

  • NEMA Socket 3 pin without / with cover IP66.
  • NEMA Socket 5 pin without / with cover IP66.
  • NEMA Socket 7 pin without / with cover IP66.
  • Zhaga Socket without / with IP66 cover.

Photocells:

  • Photocell for NEMA 3, 5 and 7 pin base.
  • Photocell for upper Zhaga base.

Smart Systems:
Clamod is compatible with:

  • Controlux One.
  • Controlux Basic.
CE
RoHS
ENEC
canarias
iecee
aenor
ENEC (2)
MARRUECOS
canarias
arrêté
india

THE DETAILS MAKE THE DIFERENCE

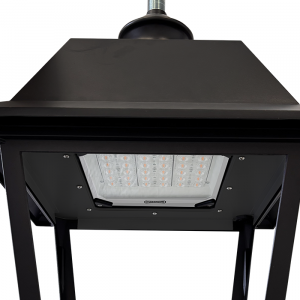

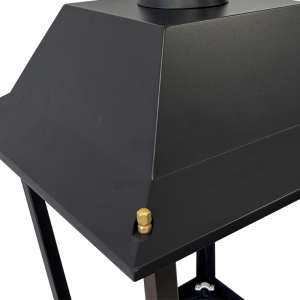

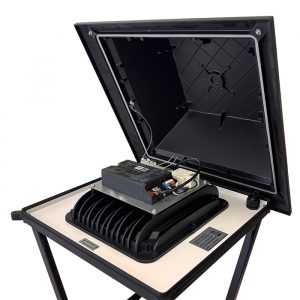

Access to the driver from the top through the dome through two screws with Ph head and with fall protection.



Luminaire prepared for fixing at the bottom.

Luminaire prepared for fixing at the top.

WE SHAPE THE LIGHT

We not only design luminaires, we shape the light and create pleasant environments for people.

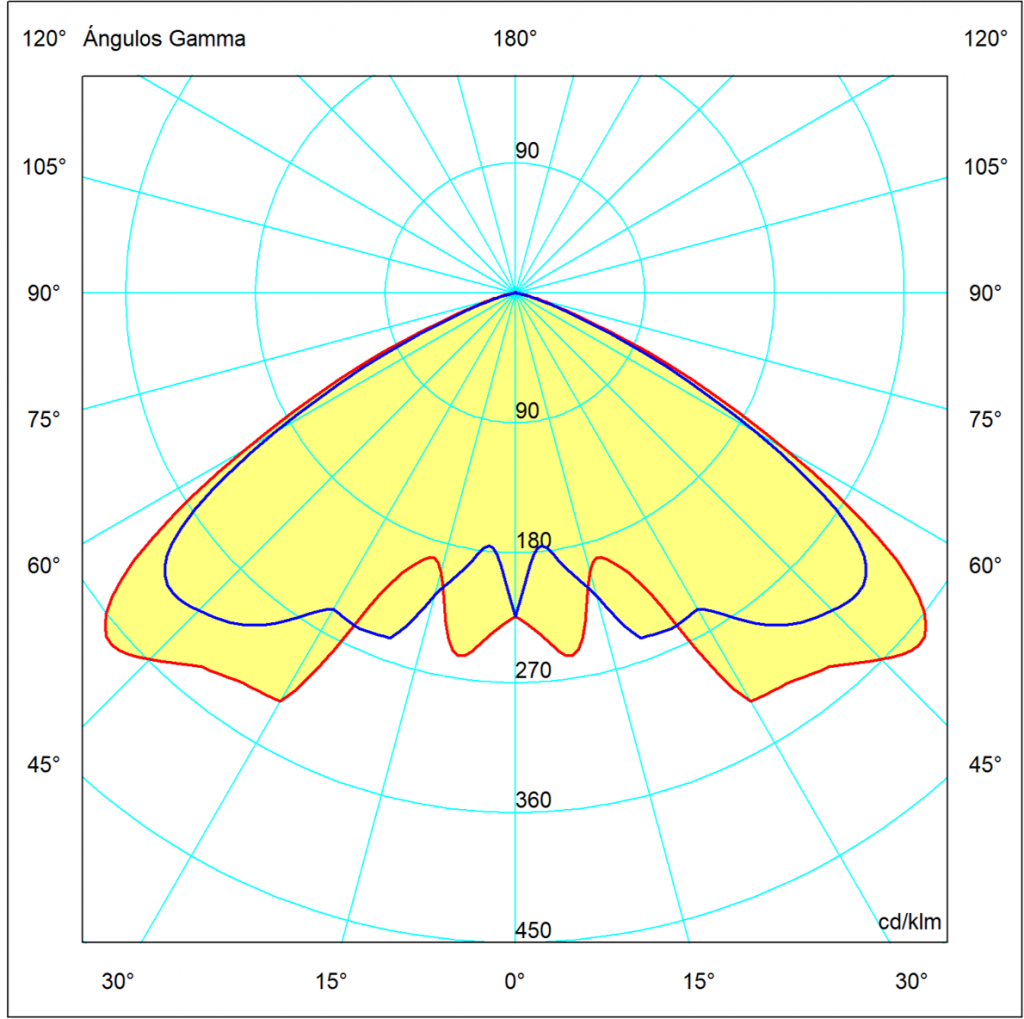

CLM.4.Z.GC.001.3.016A.SCM1

SCM1

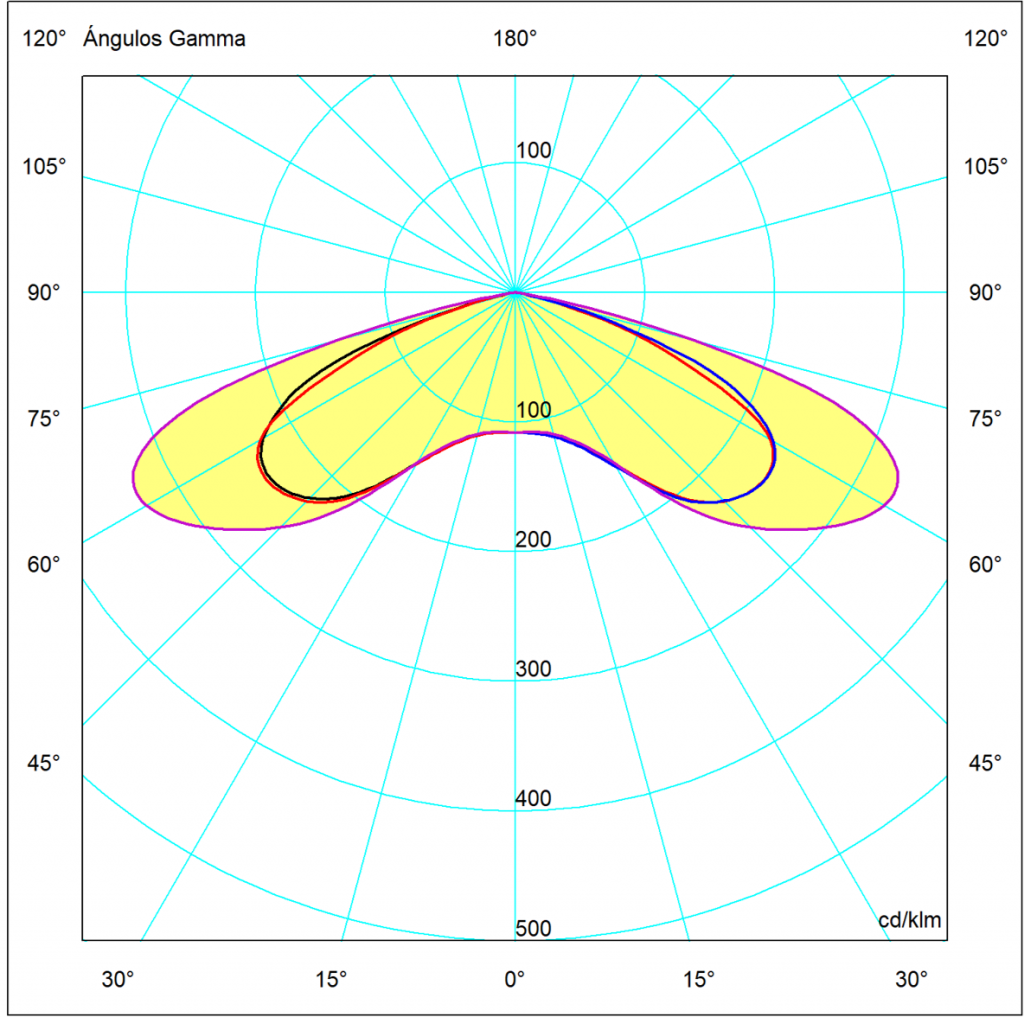

CLM.4.Z.GC.001.3.016A.SMA1

SMA1

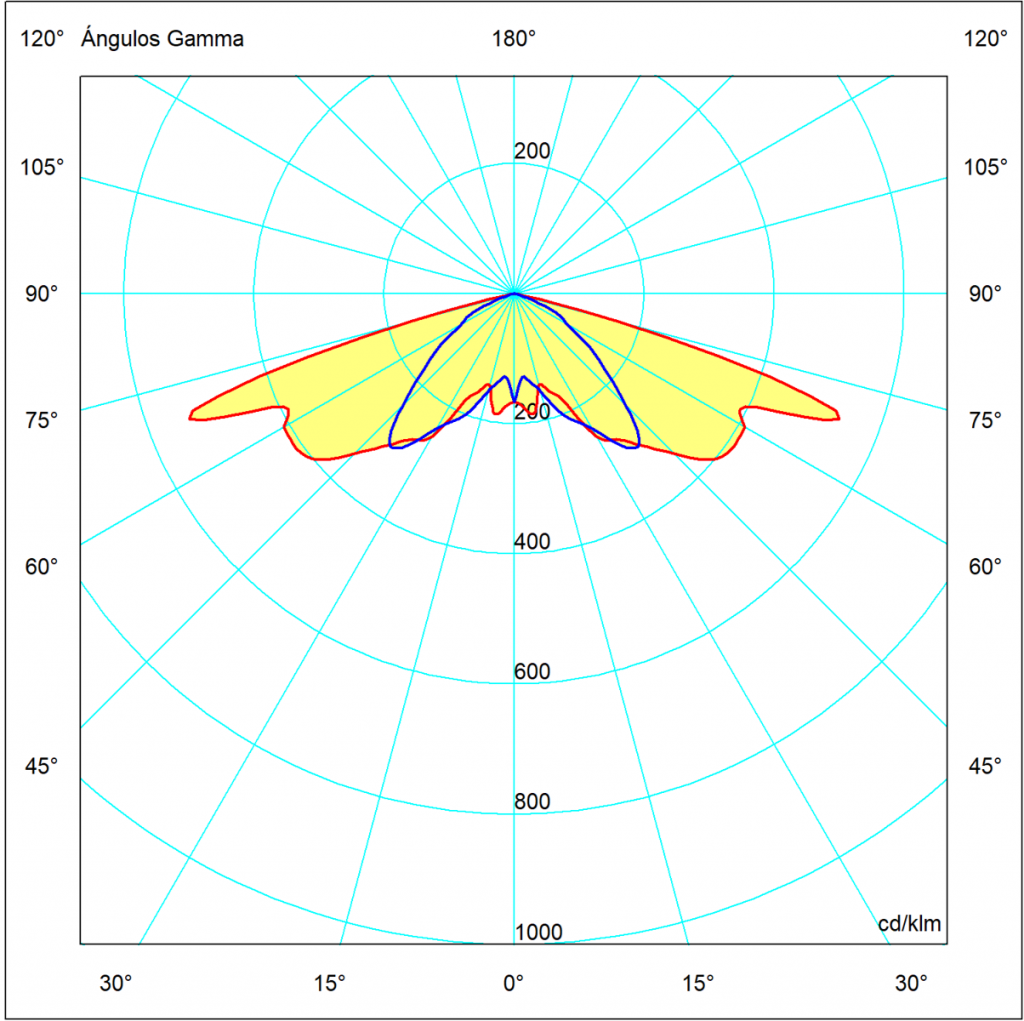

CLM.4.Z.GC.001.3.016A.SME1

SME1

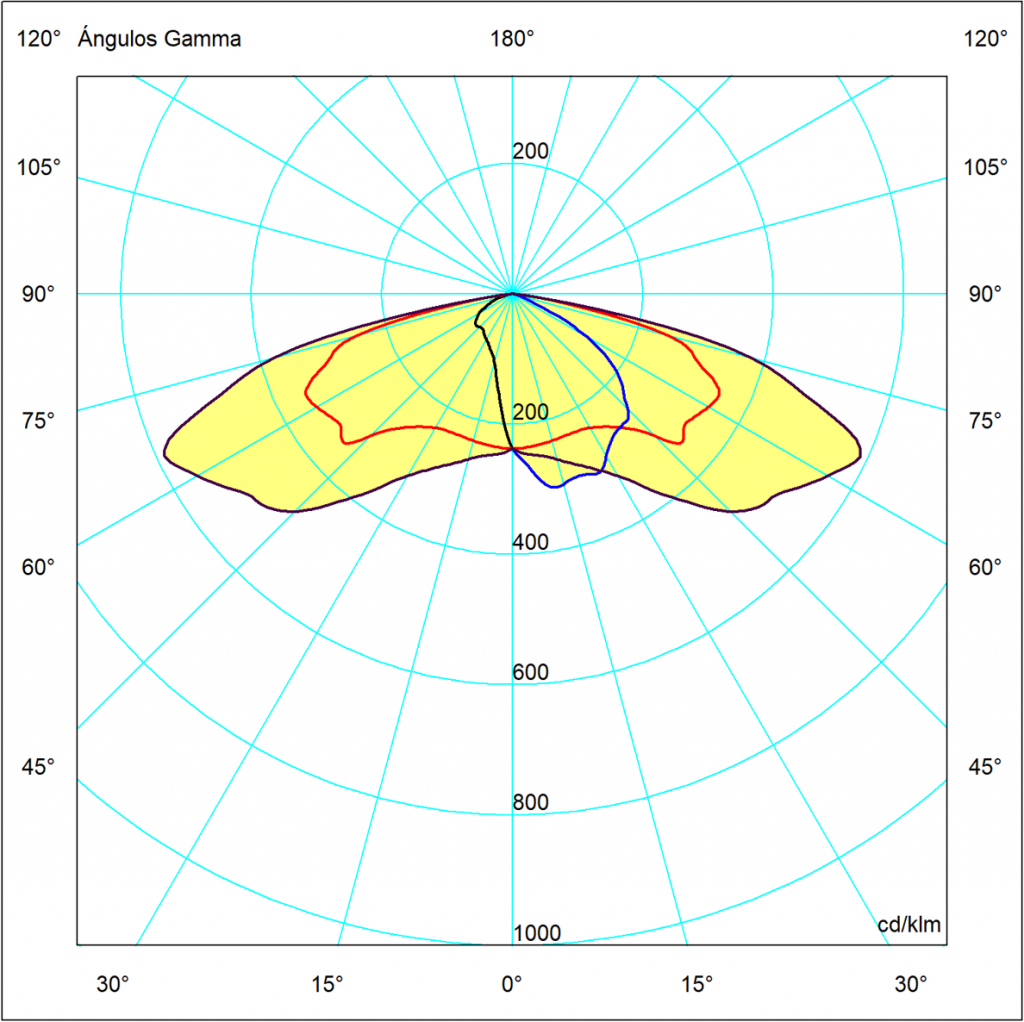

CLM.4.Z.GC.001.3.016A.ALM1

ALM1

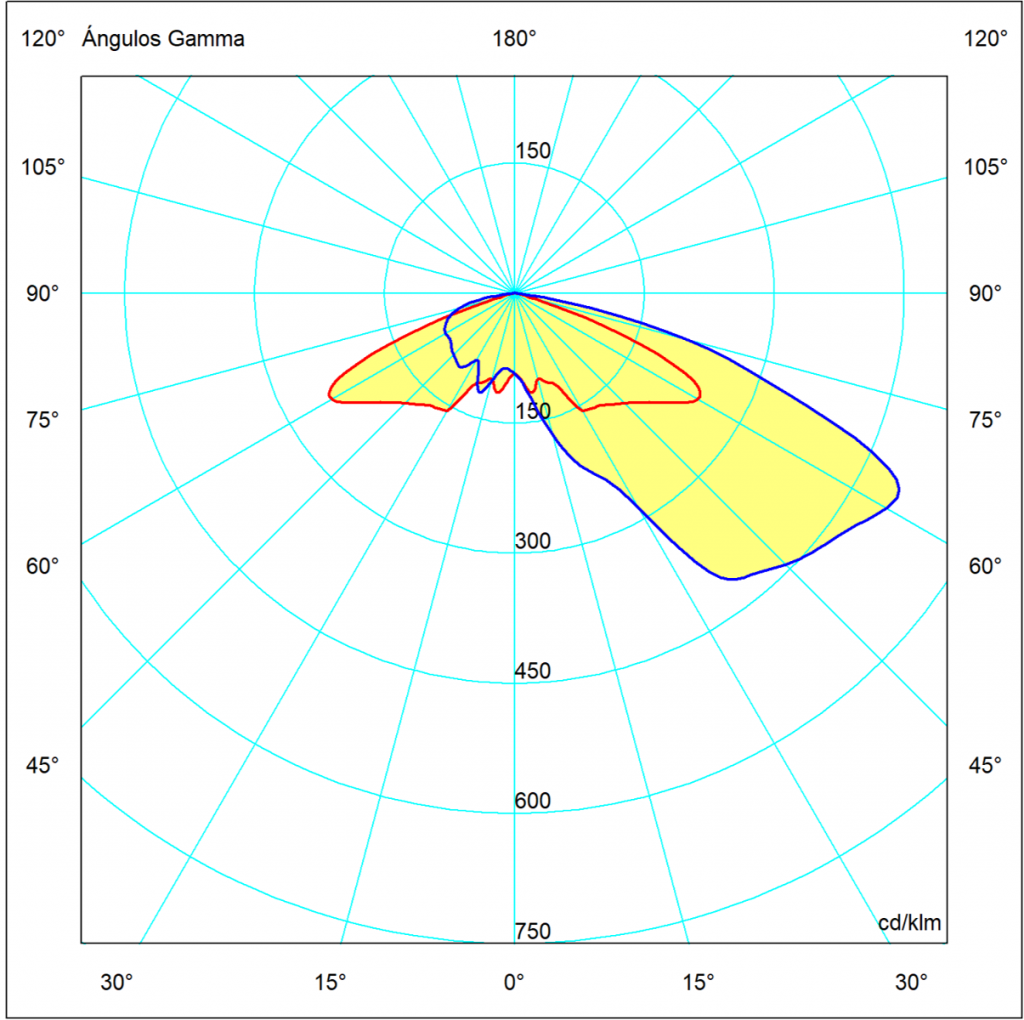

CLM.4.Z.GC.001.3.016A.AMA1

AMA1

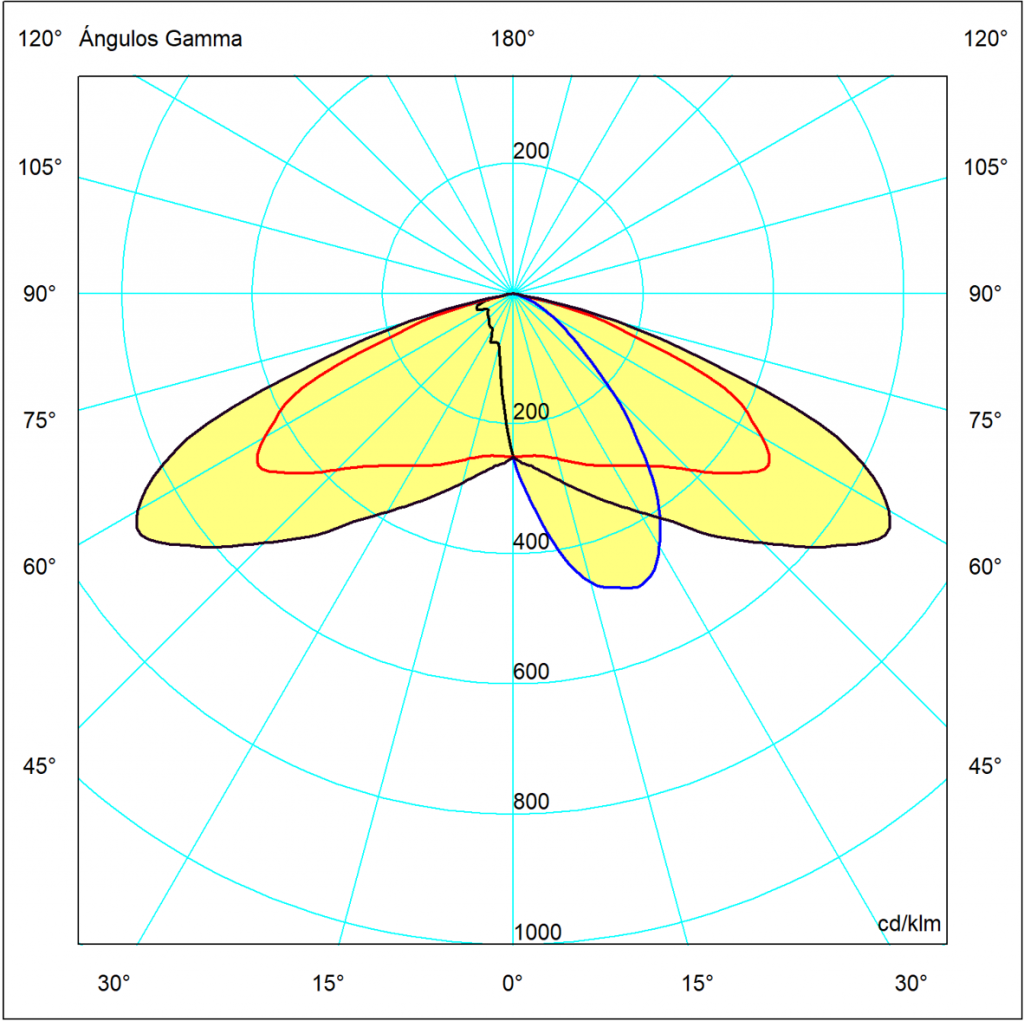

CLM.4.Z.GC.001.3.016A.AME1

AME1

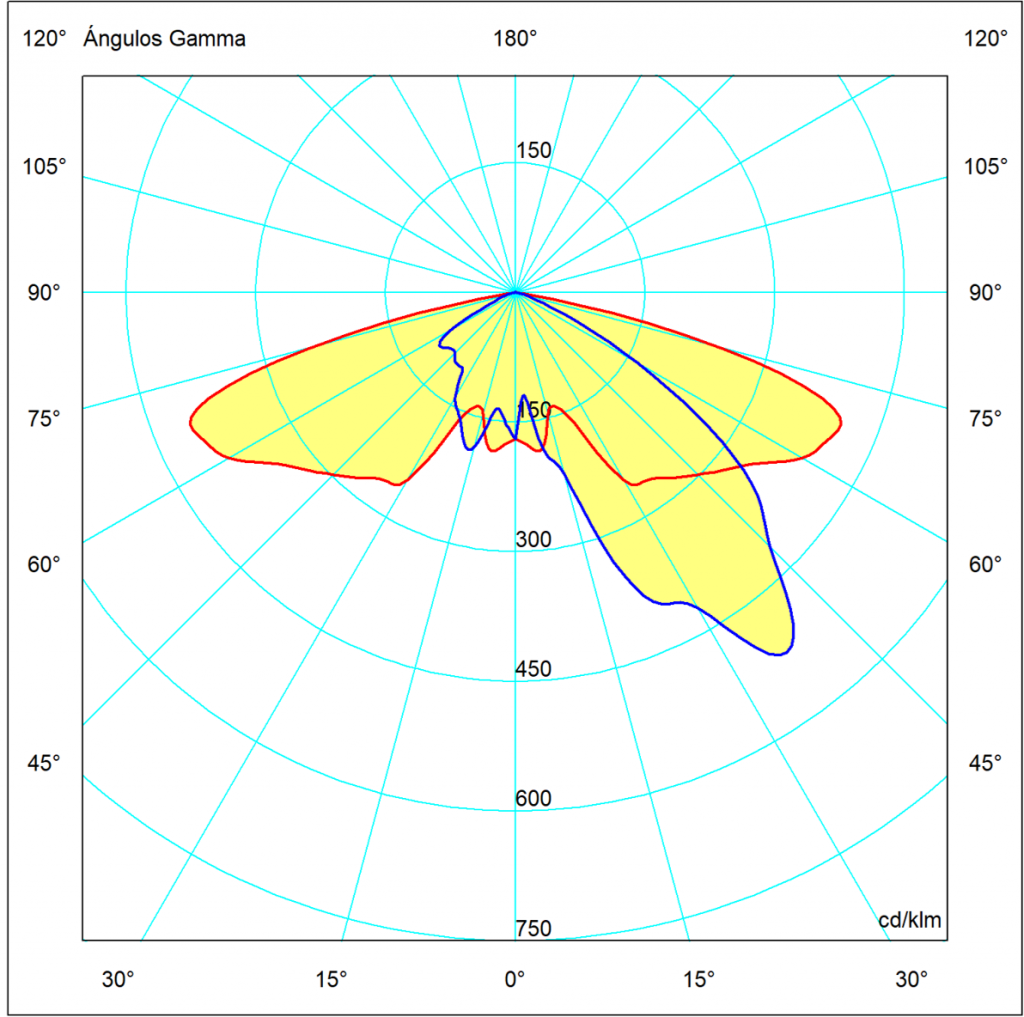

CLM.4.Z.GC.001.3.016A.AME2

AME2

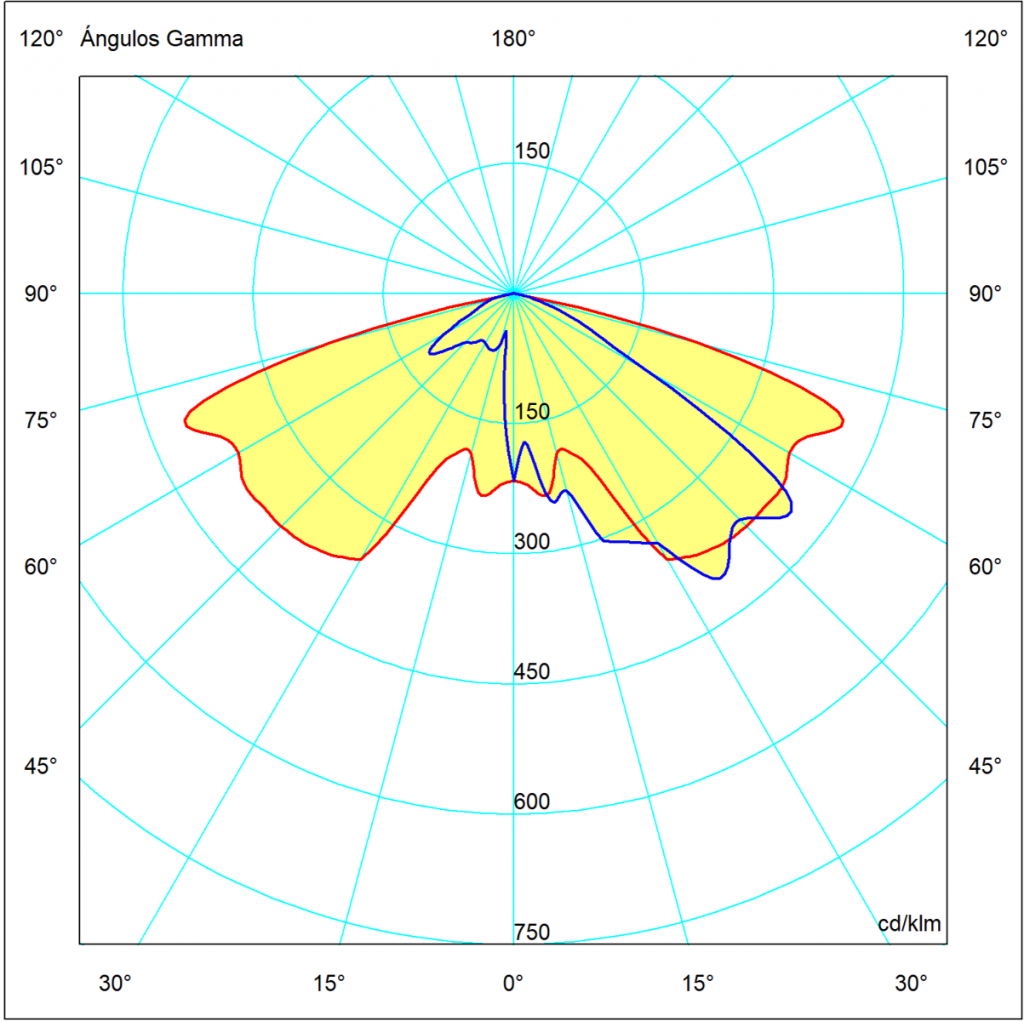

CLM.4.Z.GC.001.3.016A.AMM1

AMM1

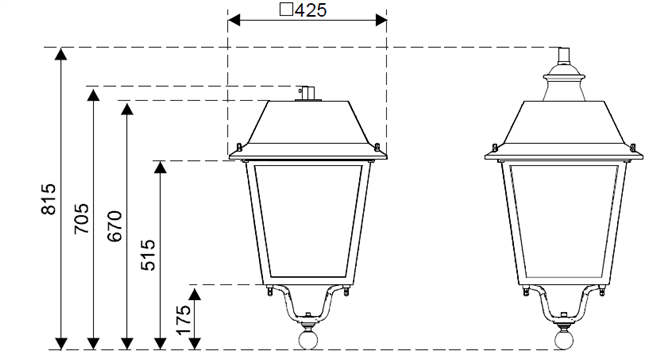

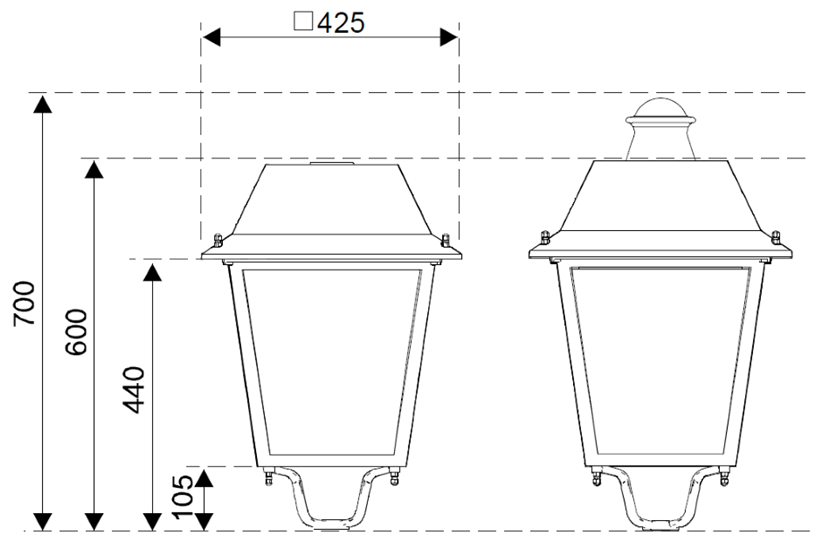

DIMENSIONS & ACCESSORIES
