SPIN

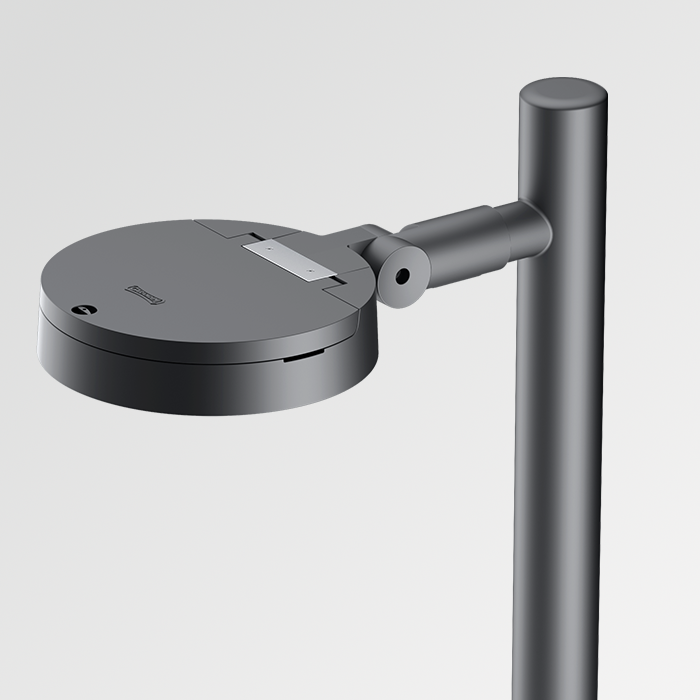

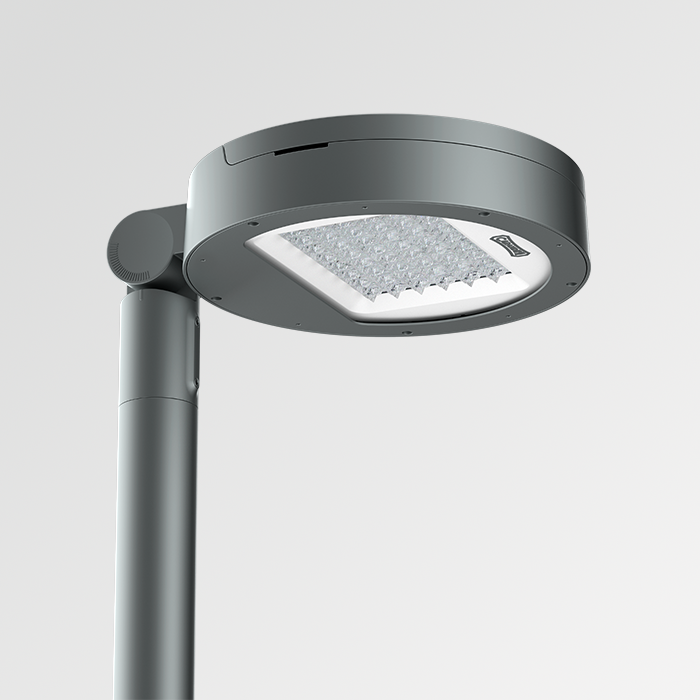

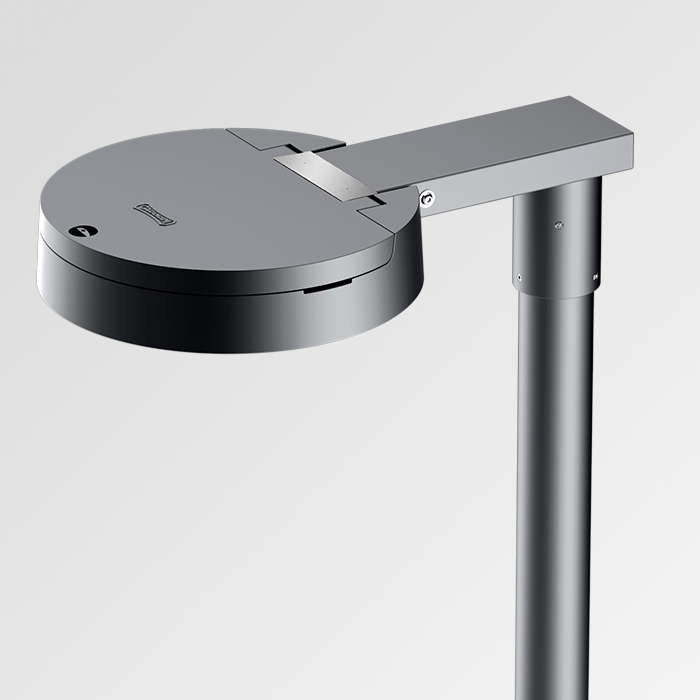

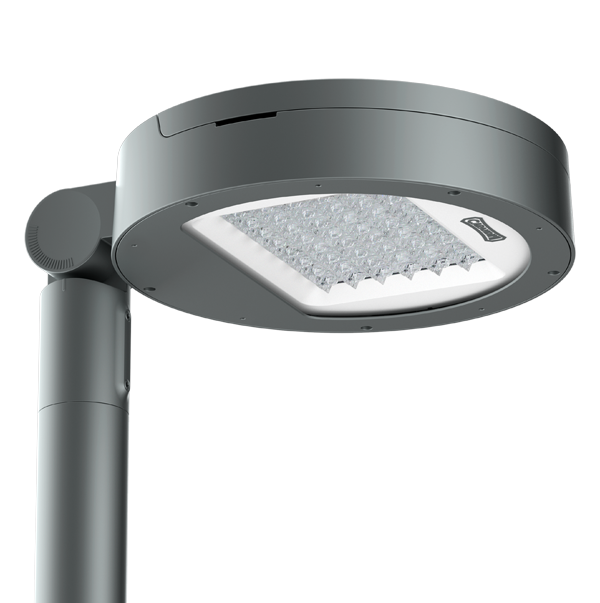

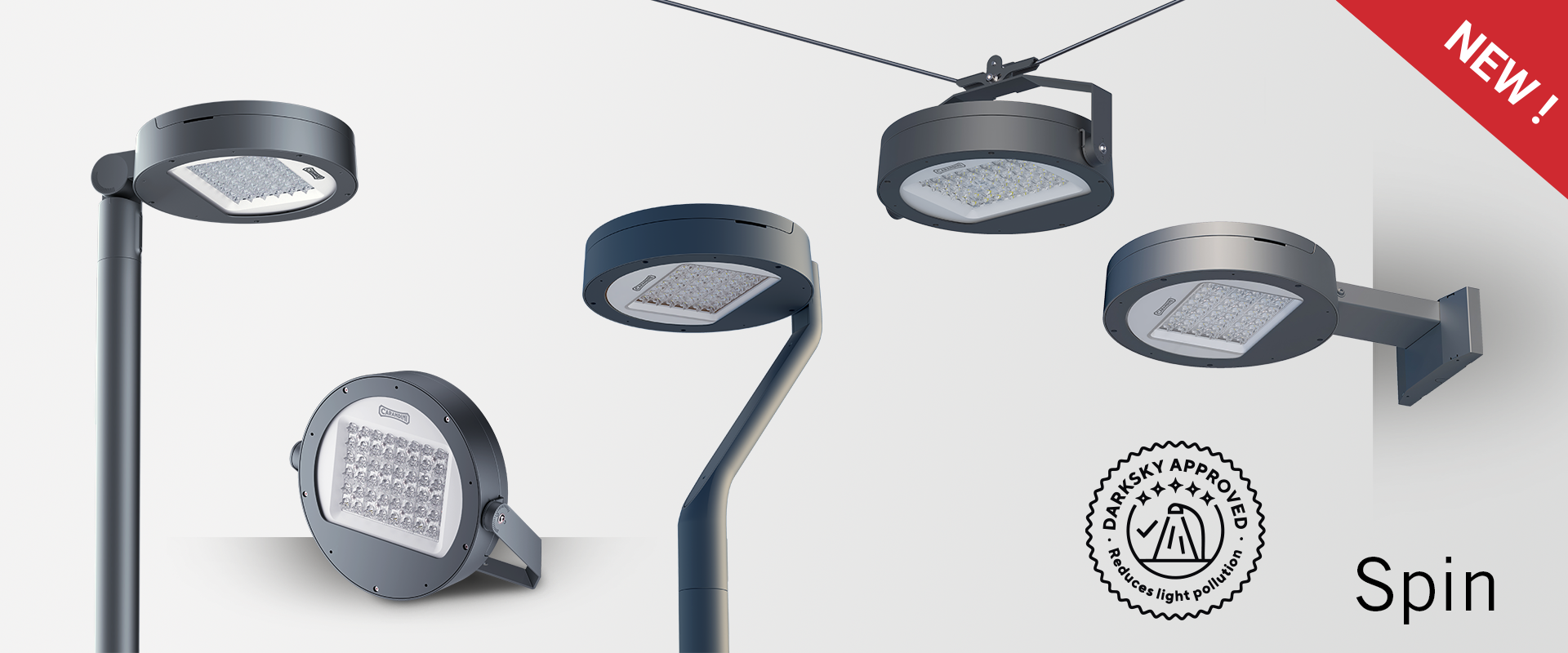

Spin is Carandini’s news lighting concept that has been designed for all types of urban spaces.

It features a simple design with a balanced silhouette, offering a harmony between the circular shape of the body and the straight lines of the fork.

Thanks to its design and the technology it incorporates, it beautifies urban spaces while creating pleasant atmospheres in the places where it is installed, bringing light where it is needed.

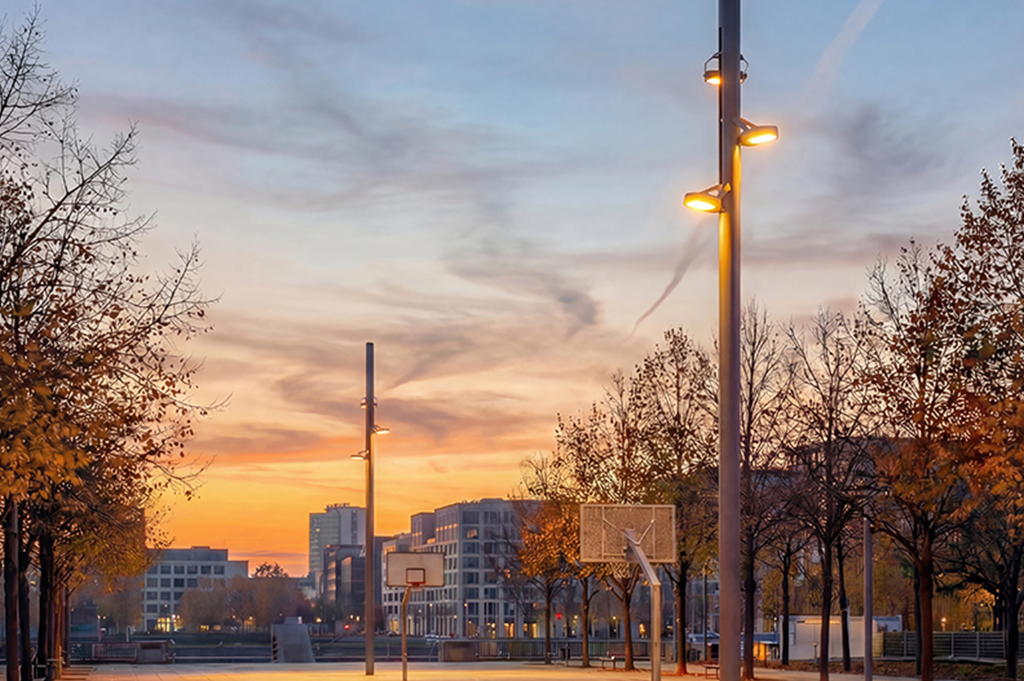

APPLICATIONS

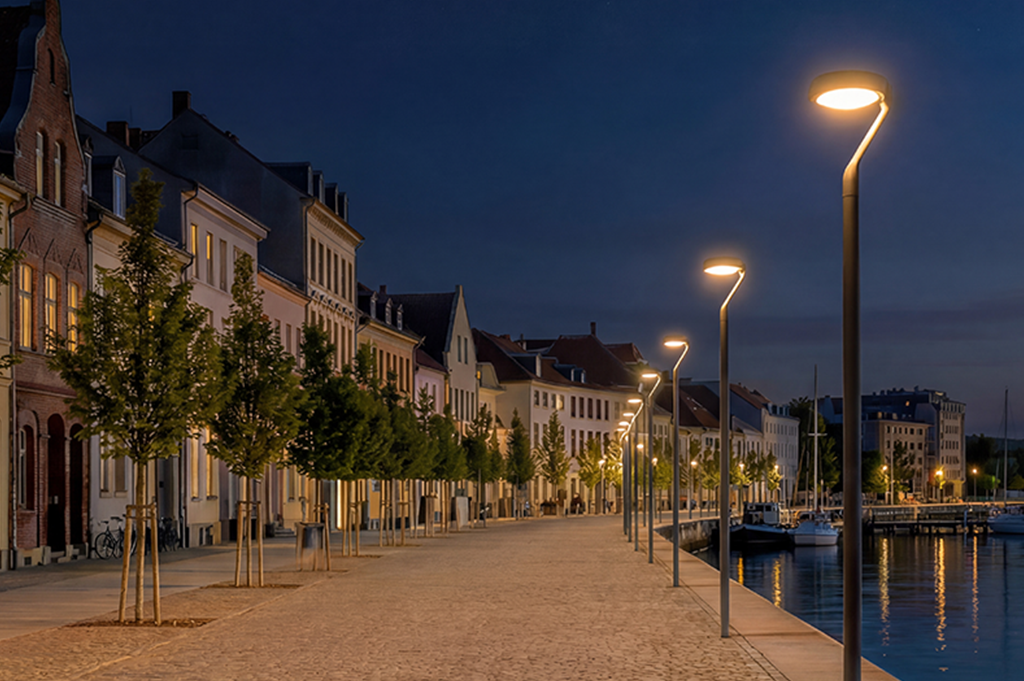

Pedestrian Areas and Urban Roads

Residential Areas

Squares and Parks

Bike lanes

Spin Versions

Spin S

600 lm to 7,2000 lm
6W – 53W

Spin M

2,500 lm to 14,000 lm
21W – 103W

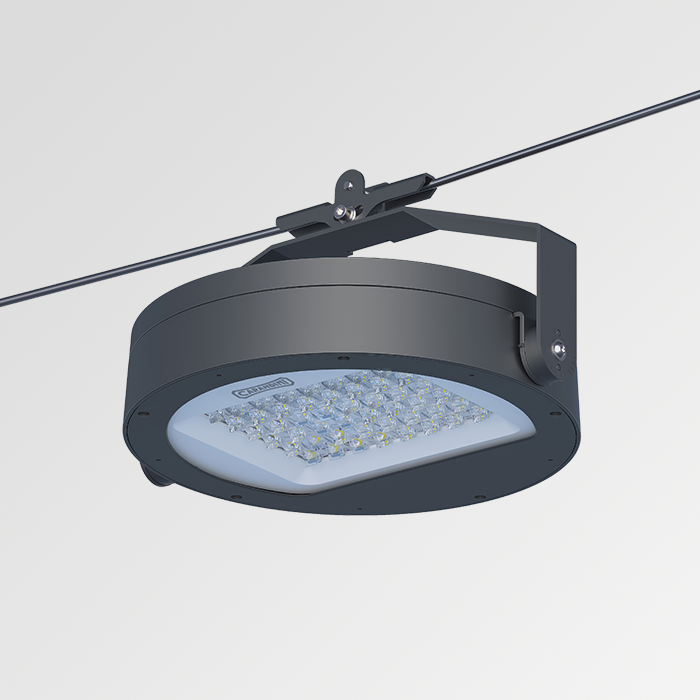

Types of fixation

Floor fixing

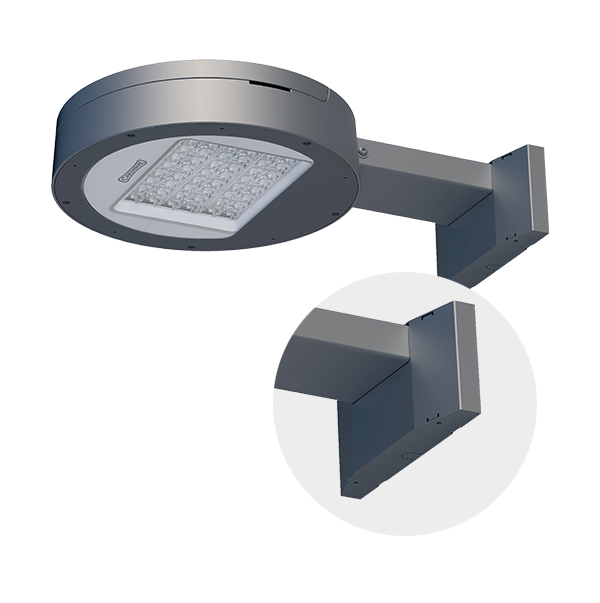

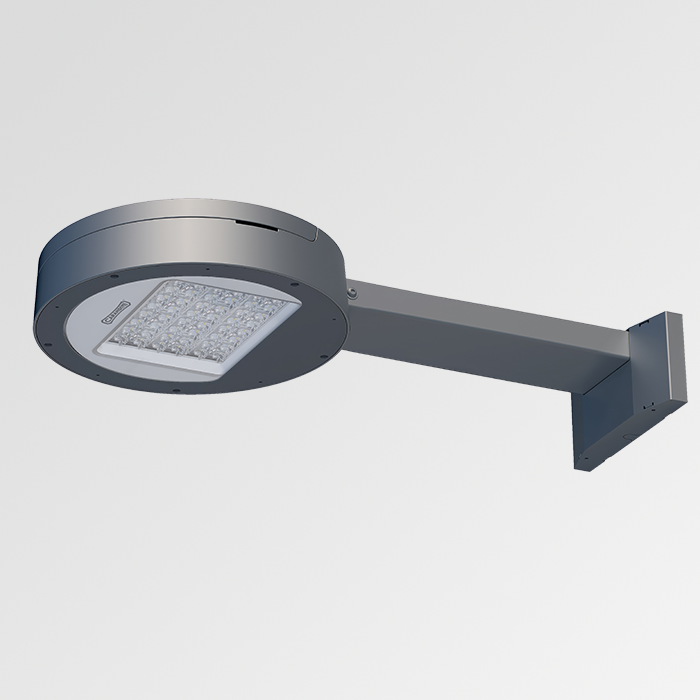

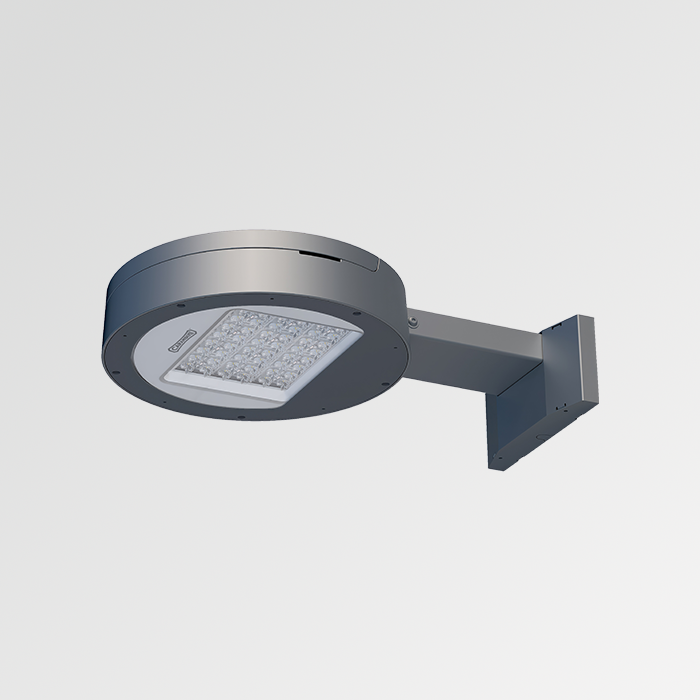

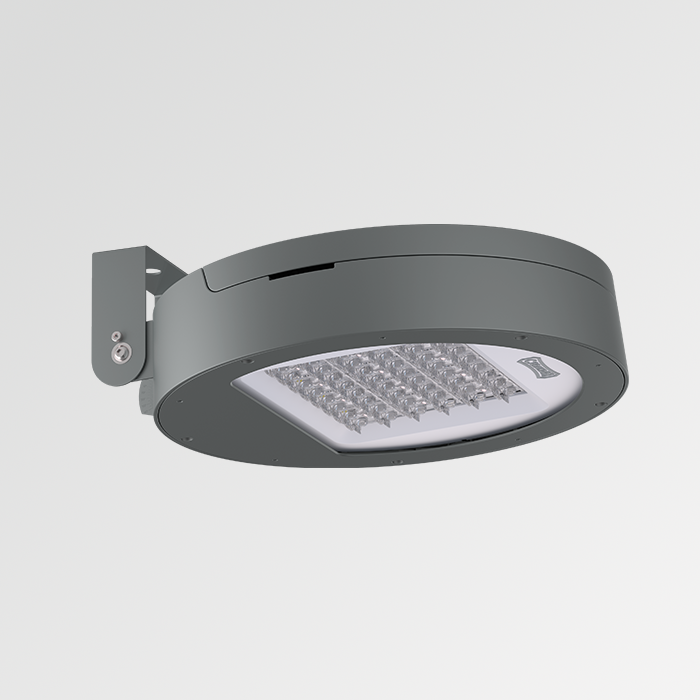

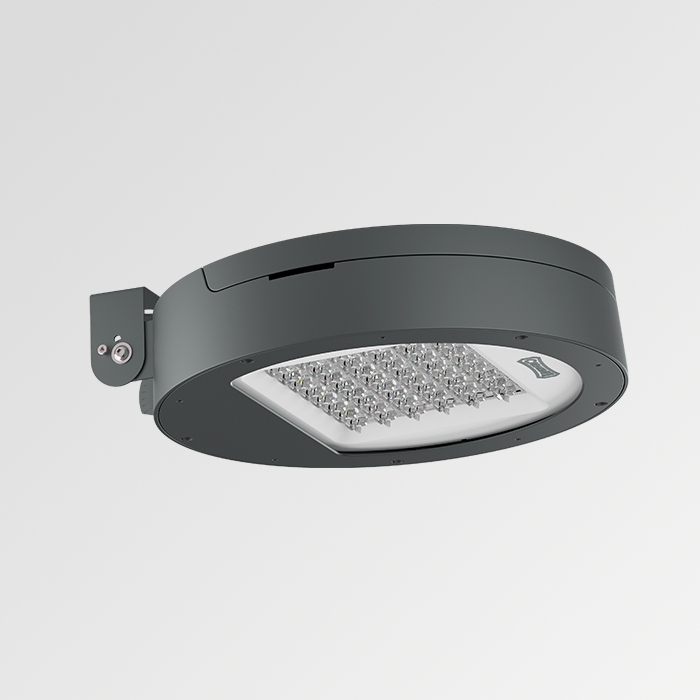

Wall fixing

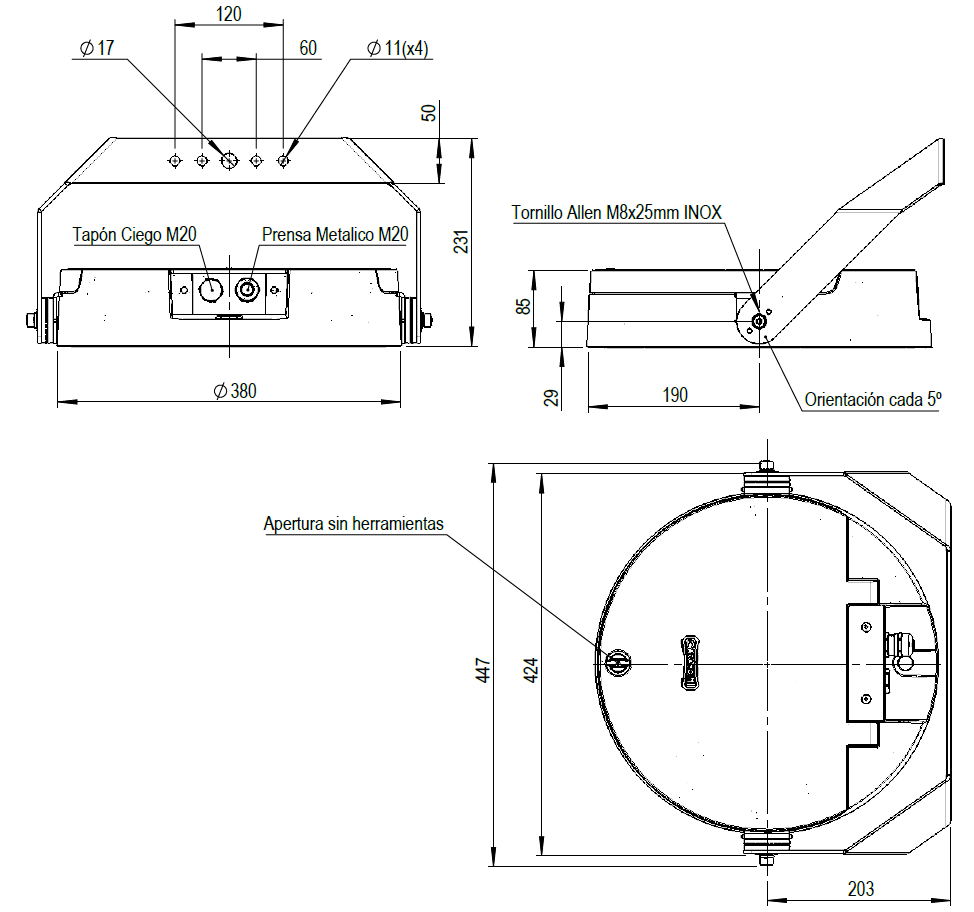

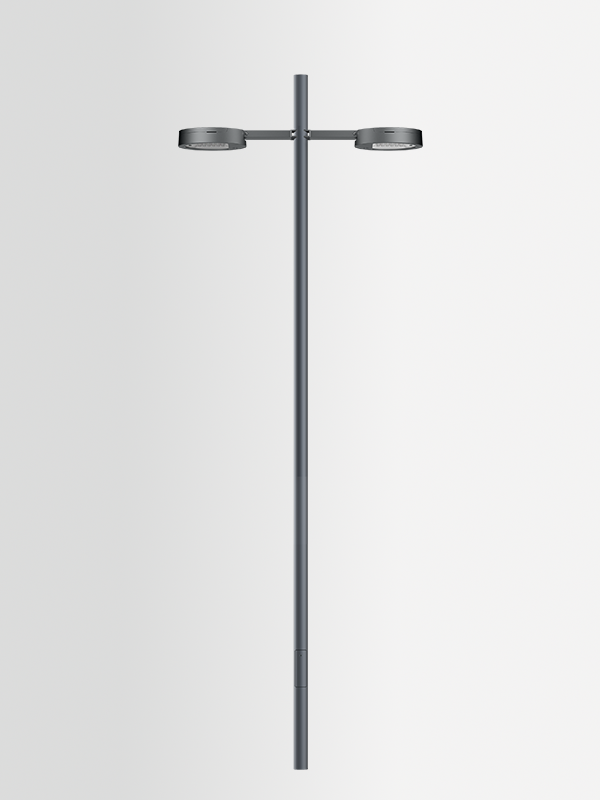

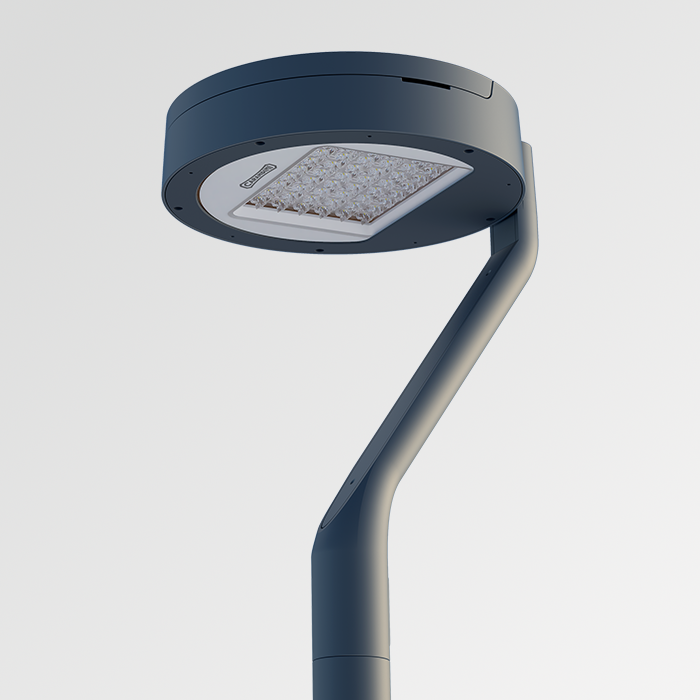

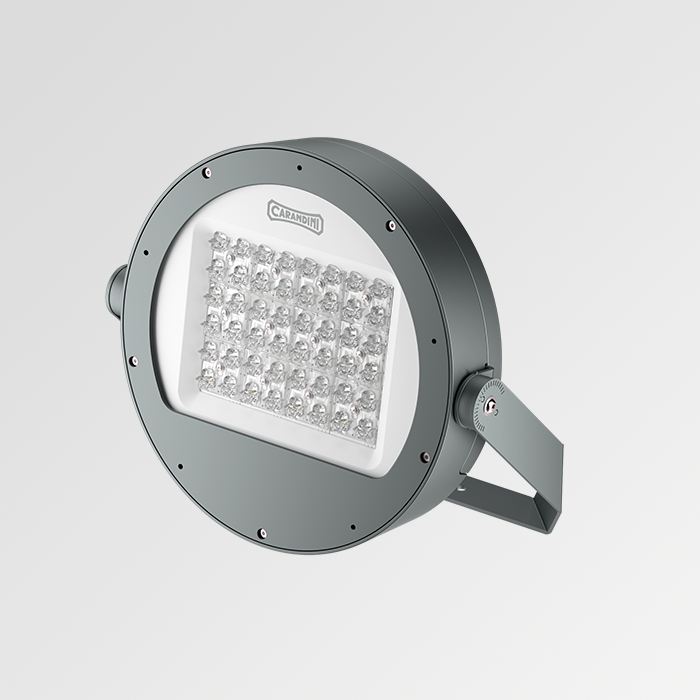

Fixation to column with fork

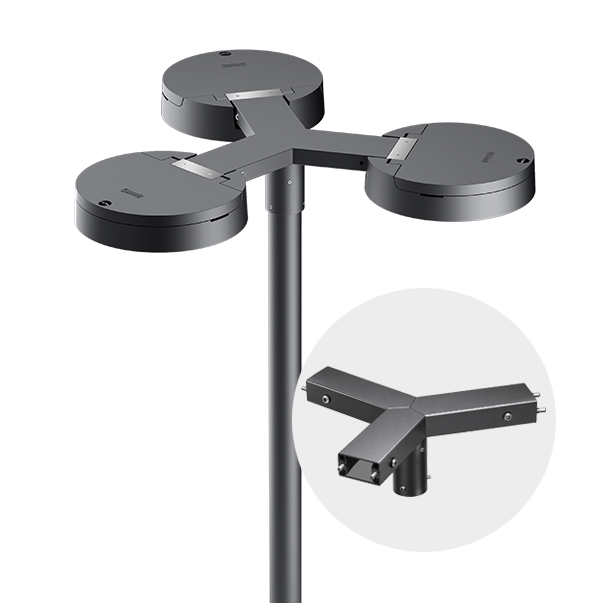

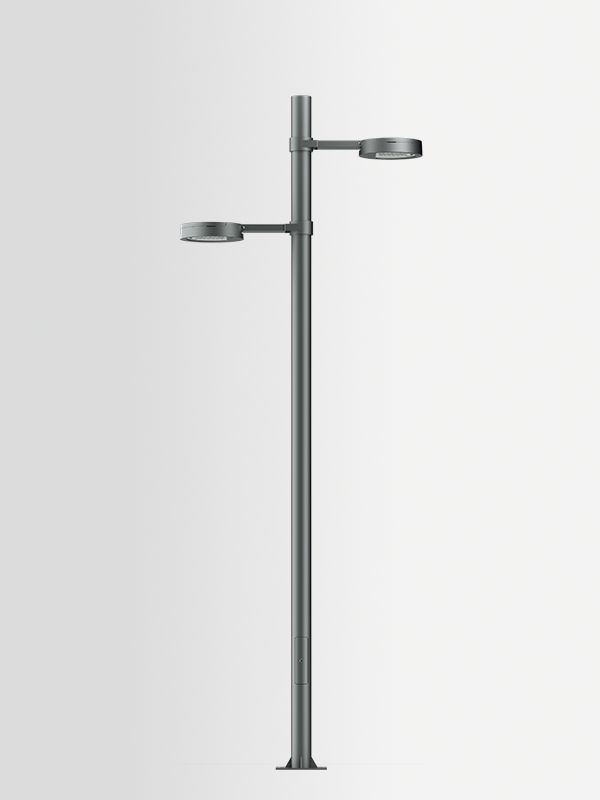

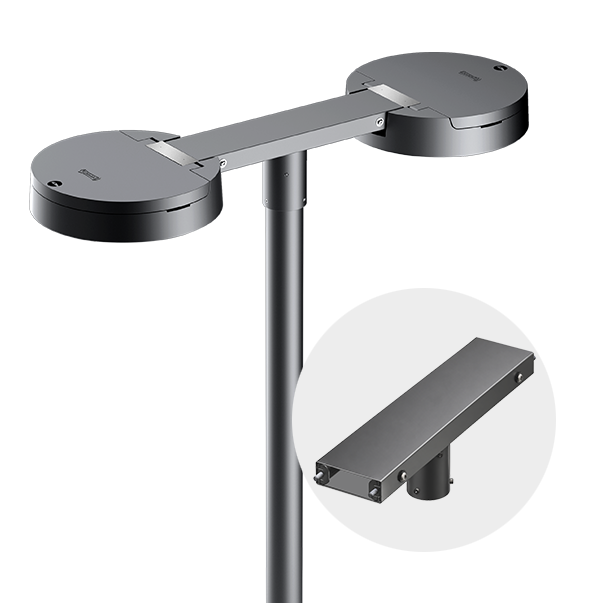

Fixation to column with double accessory

Fixation to column with simple accessory

TECHNICAL SPECIFICATIONS

Materials:

  • Die cast aluminum EN AC-44100 with low copper content <0.1%.
  • Closure tempered flat glass 5mm thick.
  • Polymethylmethacrylate PMMA optics.
  • Nuts outer and bolts stainless steel (AISI304).

Finish:

  • Gray powder paint RAL 7015 Textured (715T).

Pressure compensation valve:

  • The luminaire has a pressure compensation valve that compensates for internal / external system pressure.

Watertightness and impact protection grade:

Spin S:

  • IP66.
  • IK09.

Spin M:

  • IP66.
  • IK09.

Installation and maintenance:

  • Access to the driver without tools and from the top by removing the cover.

Weight with equipment:

  • Spin S: 6,7 Kg.
  • Spin M: 7,7 Kg.

Operating temperature:

  • Ta -40ºC to+50ºC.
    According to luminaire configuration.

Lifespan:

  • L90B10 100,000h of 25ºC.

Luminaire performance:

  • Spin S:
    600 lm up to 7,200 lm.
    From 6 W to 53 W.
    Up to 149 lm/W.
  • Spin M:
    2 ,500 lm up to 14,000 lm.
    From 21W to 103 W.
    Up to 152 lm/W.

LEDs:
Incorporate:

  • Spin S: 8, 16 and 24 LEDs.
  • Spin M: 32 and 48 LEDs.

LED color temperature:

  • 4,000K (Neutral White, nw).
  • 3,000K (Warm White, ww).
  • 2,700K (Warm White, ww).
  • 2,200K (Warm White, ww).
  • Optionally amber color temperature.

Index of reproduction chromatic (CRI):

  • CRI>70.
    Optional CRI80

ULOR:

  • 0,00% and 0,08%.

Surge protection:

  • Combined discharge voltage (1,2/50) 10 kV
  • Maximum discharge current (8/20) 10 kA
  • Maximum service voltage (L-N) 320 V
  • Maximum service voltage (L/N-GND) 400 V
  • Optional surge protection: 20kA, 20 kV

Electrical class:

  • Class I or Class II.

Harmonic distortion:

  • <10%.

Power factor:

  • > 0,9.

Voltage / Frequency:

  • 220V – 240V / 50Hz – 60Hz.
  • 120V – 277V / 50Hz – 60Hz.

Equipment:

  • 1 Level.
  • Adjustable LED in header.
  • Dimmable LED Dali Protocol.
  • Dimmable LED 1-10V.
  • Adjustable LED in header. (pulses)
  • Dual level dimmable LED.
  • Other equipment, consult.

Autonomous regulation:

  • 50% of the 24: 00h at 6: 00h.
  • 60% of the 24: 00h at 6: 00h.
  • 70% of the 24: 00h at 6: 00h.
  • Programming according to client.

CLO regulation:

  • 70% luminous flux throughout the life of the luminaire.
  • 80% luminous flux throughout the life of the luminaire.
  • 90% luminous flux throughout the life of the luminaire.

Socket:

  • NEMA Socket 3 pin without / with cover IP66.
  • NEMA Socket 5 pin without / with cover IP66.
  • NEMA Socket 7 pin without / with cover IP66.
  • Zhaga Socket without / with IP66 cover.

Photocells:

  • Photocell for NEMA 3, 5 and 7 pin base.
  • Photocell for upper Zhaga base.

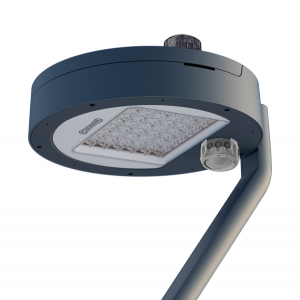

Smart Systems:
Spin is compatible with:

  • Controlux One.
  • Controlux Basic.

THE DETAILS MAKE THE DIFERENCE

Spin presents a simple design with a balanced silhouette, offering a harmony between the circular shape of the straight lines of the fork.

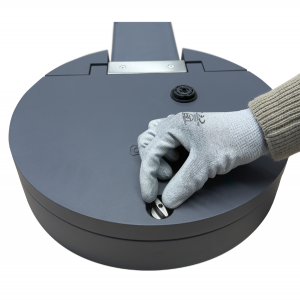

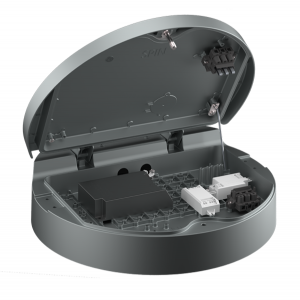

Opening system without tools designed by Carandini.

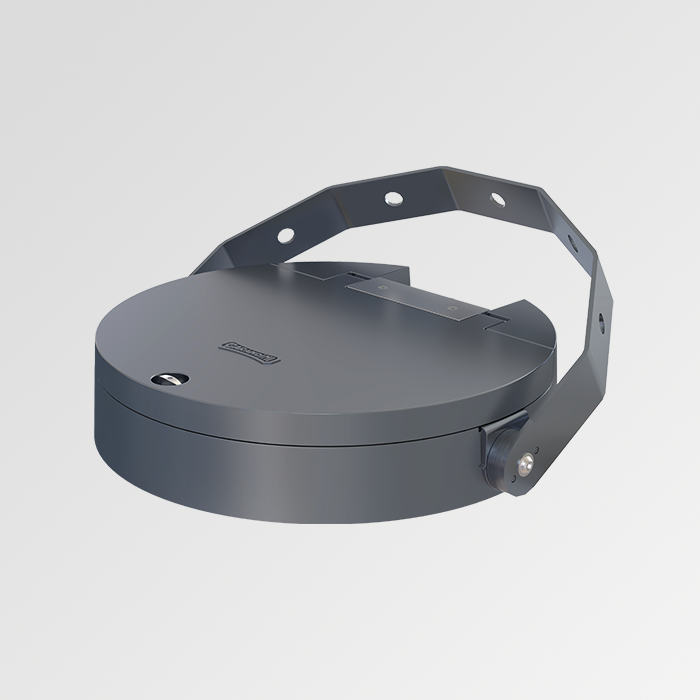

The fork incorporates marks for adjusting the inclination by degrees.

Maximum inclination capacity of the luminaire to offer the adequate light in the necessary place.

WE SHAPE THE LIGHT

We not only design luminaires, we shape the light and create pleasant environments for people.

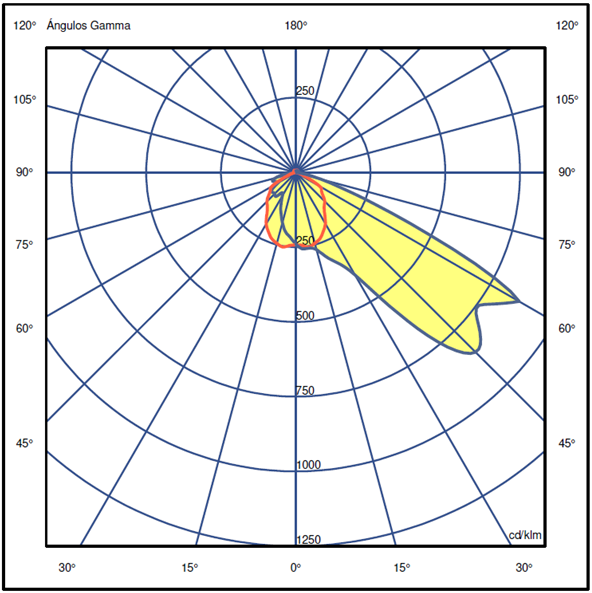

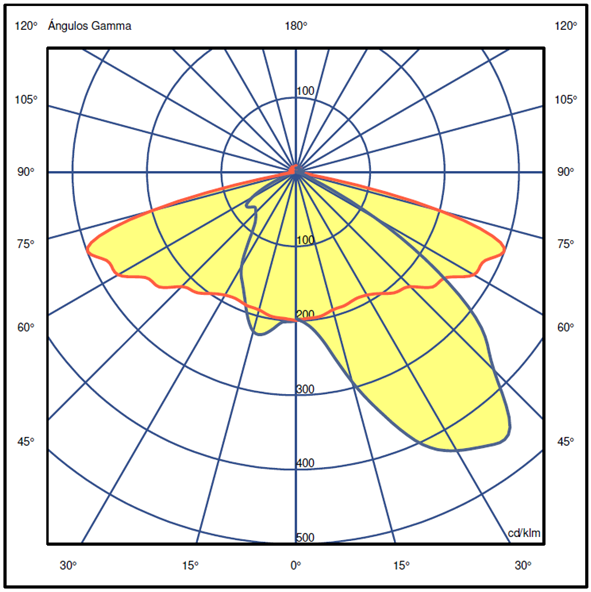

SPI.1.M.CC.002.3.024A.SMA1

SMA1

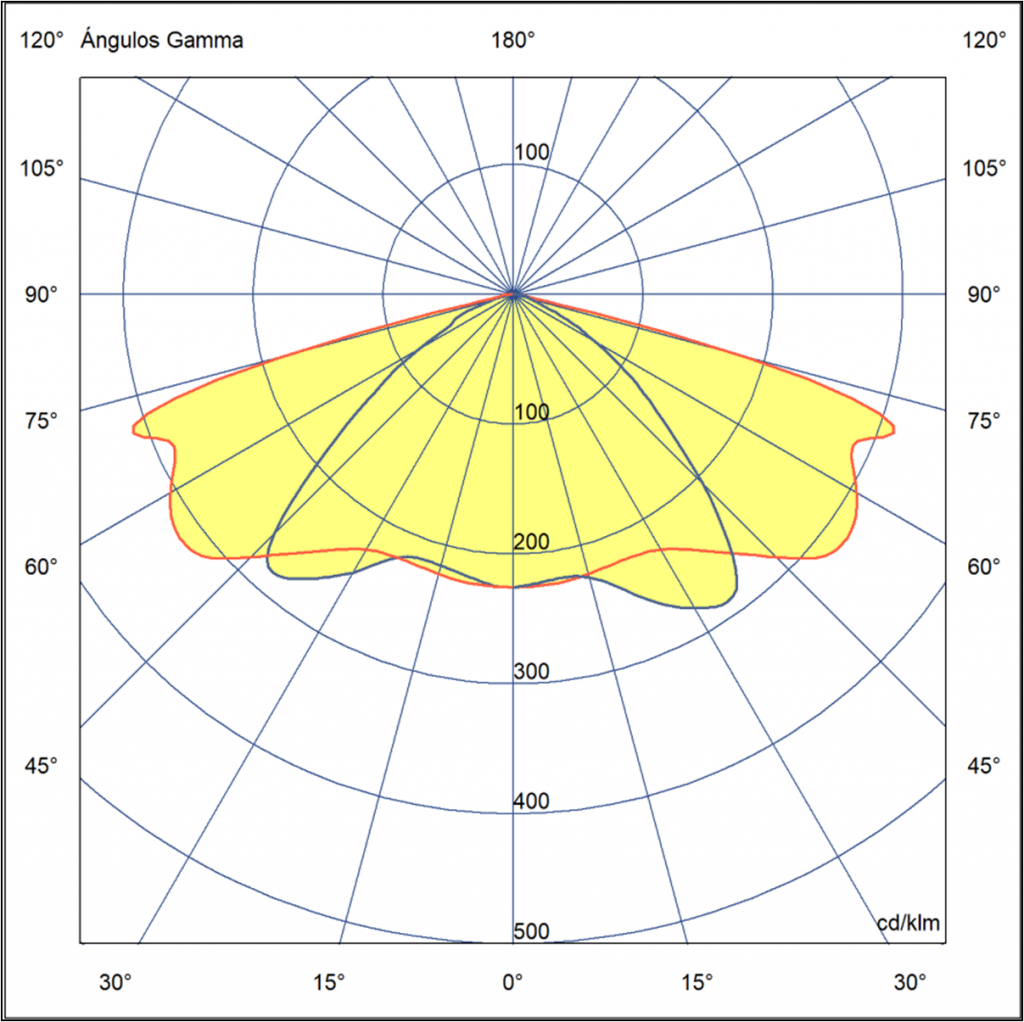

SPI.1.M.CC.002.3.024A.SME1

SME1

SPI.1.M.CC.002.3.024A.ACA1

ACA1

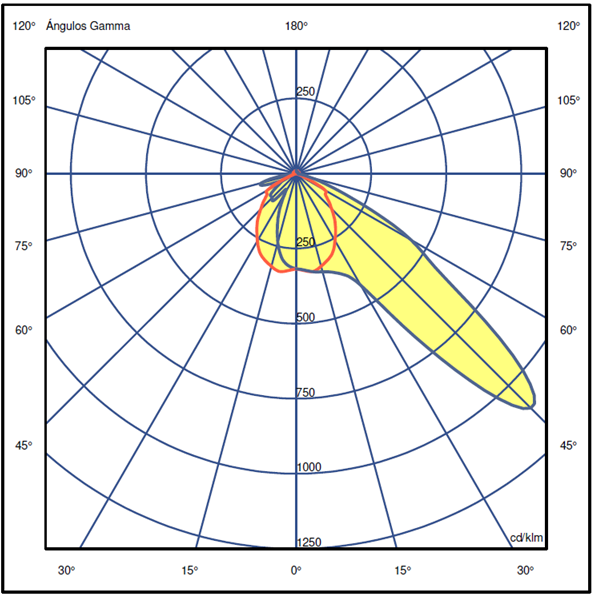

SPI.1.M.CC.002.3.024A.ACM1

ACM1

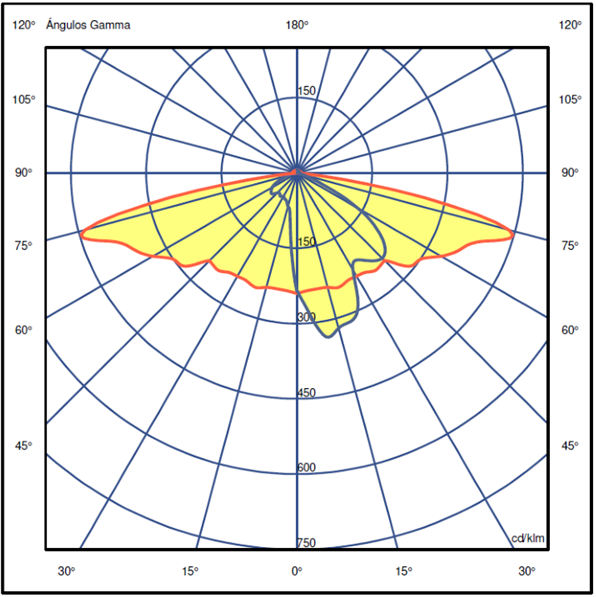

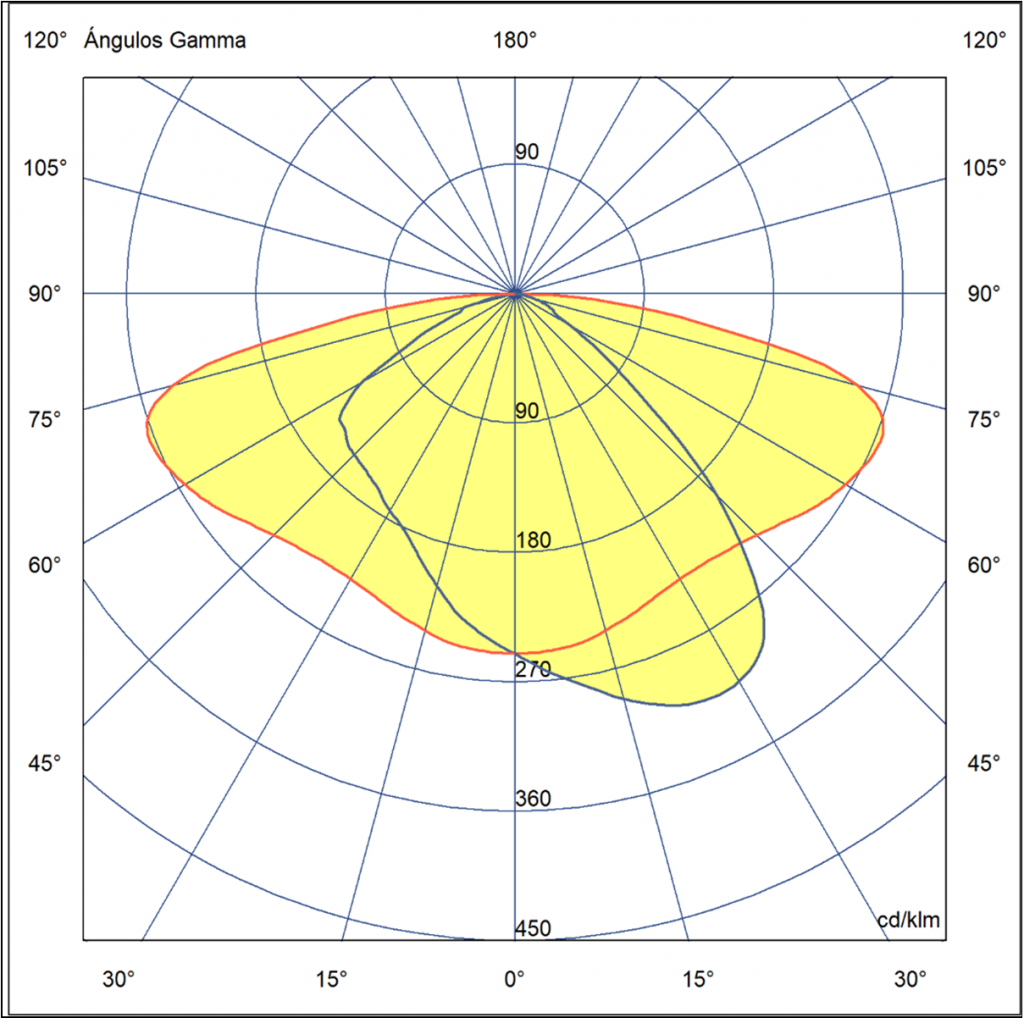

SPI.1.M.CC.002.3.024A.ALM1

ALM1

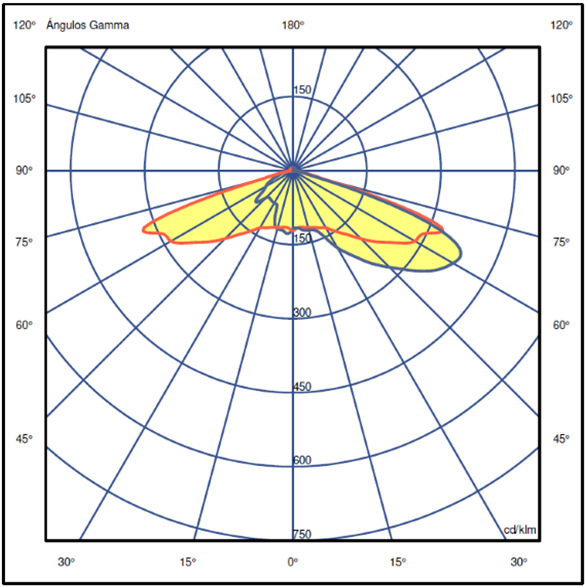

SPI.1.M.CC.002.3.024A.AMA1

AMA1

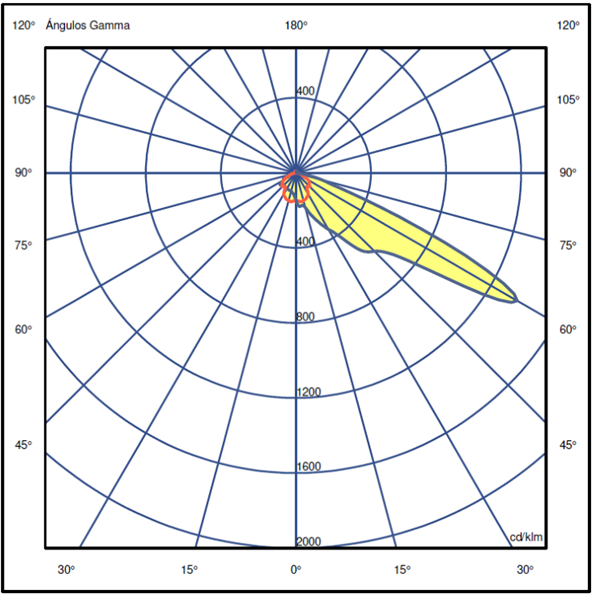

SPI.1.M.CC.002.3.024A.AMA2

AMA2

SPI.1.M.CC.002.3.024A.AME2

AME2

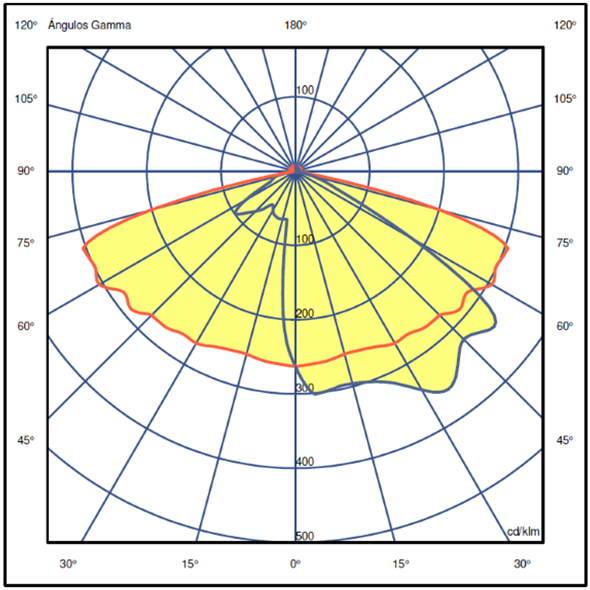

SPI.1.M.CC.002.3.024A.AMM1

AMM1

SPI.1.M.CC.002.3.024A.PCE1

PCE1

SPI.1.M.CC.002.3.024A.PCE2

PCE2

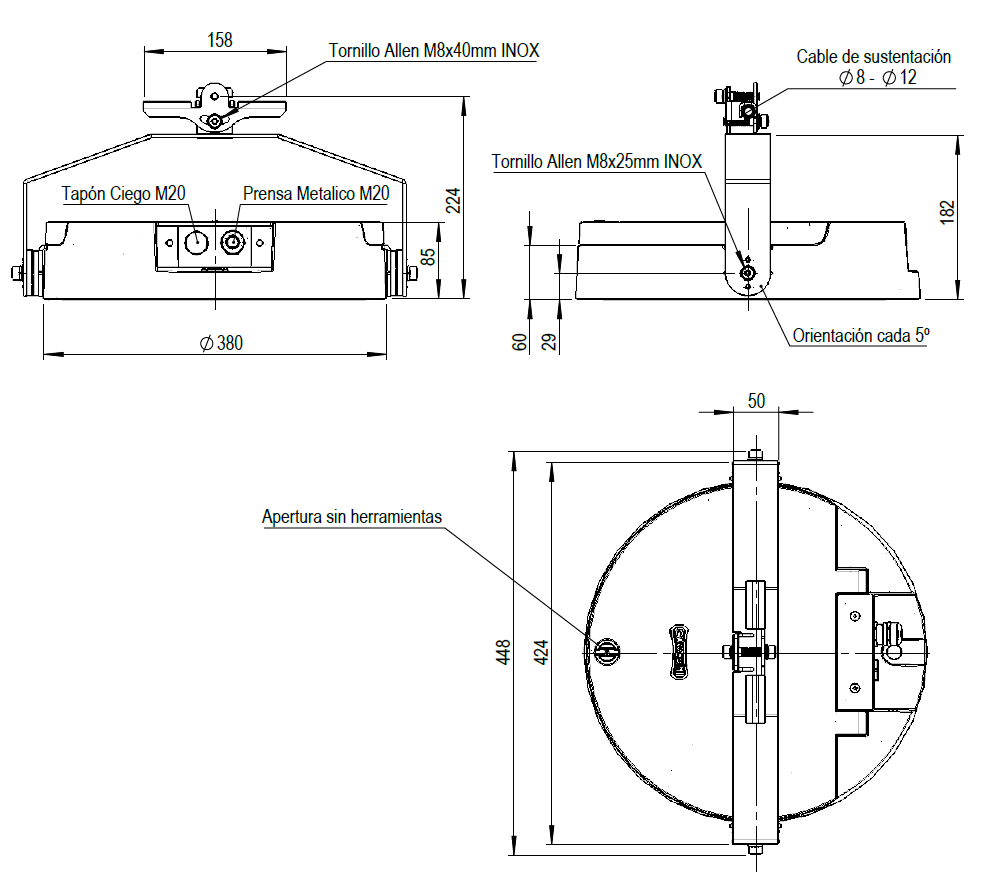

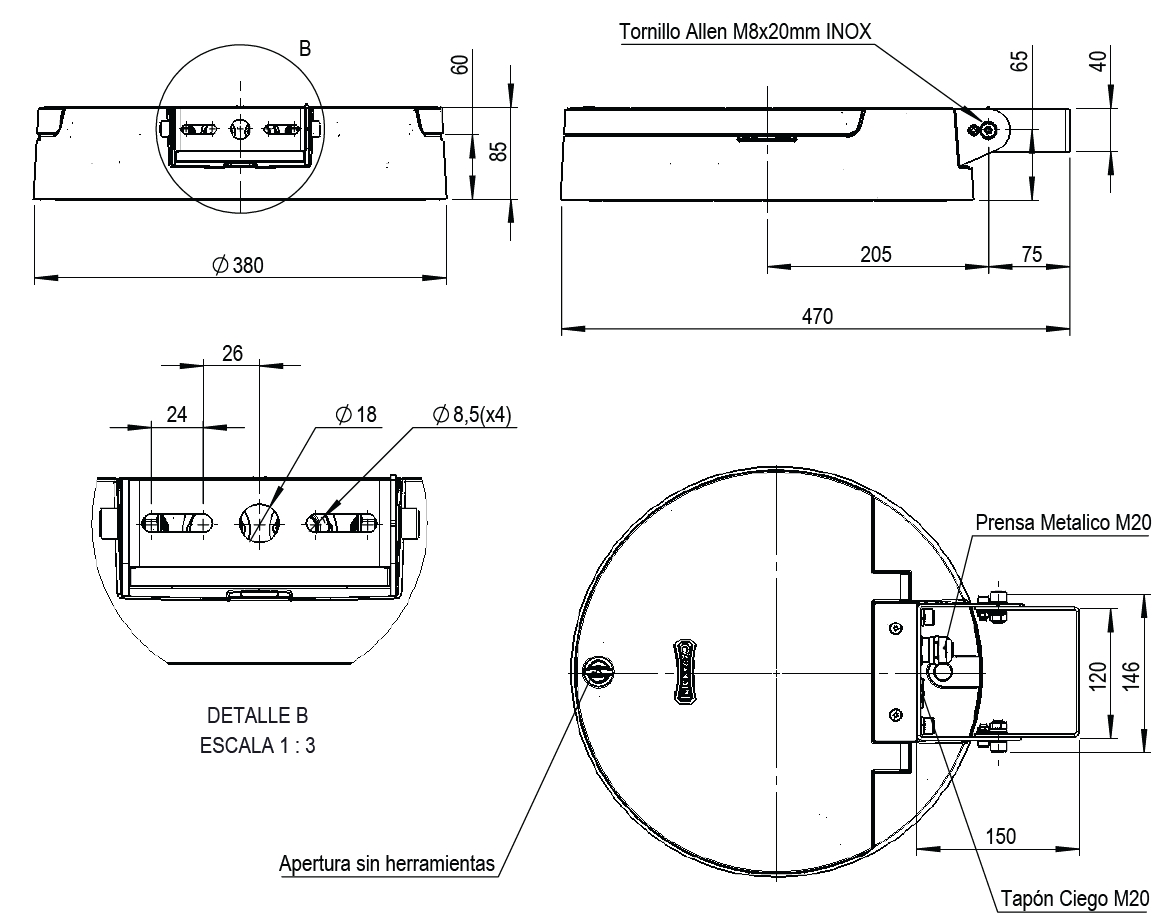

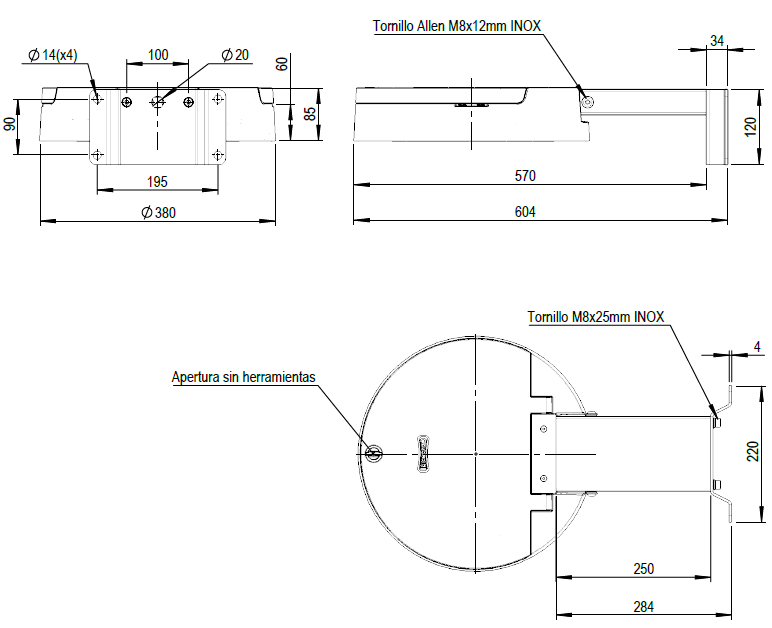

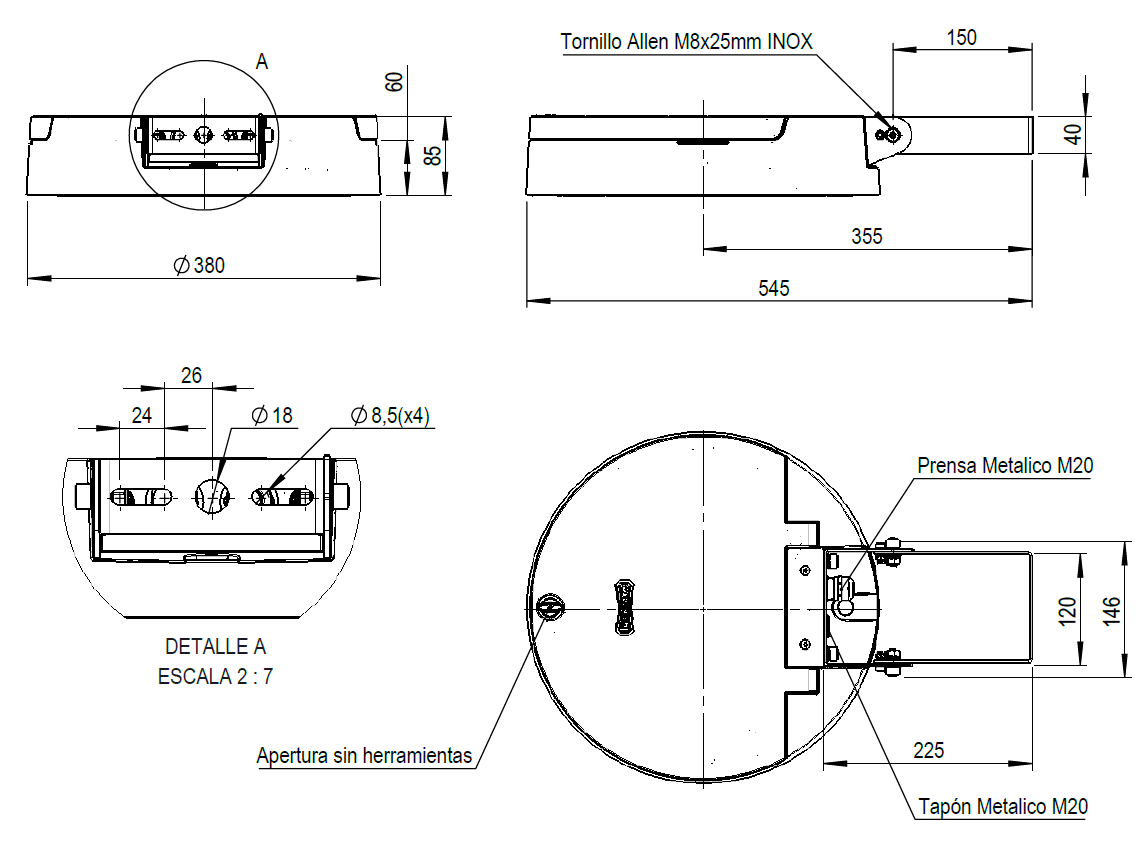

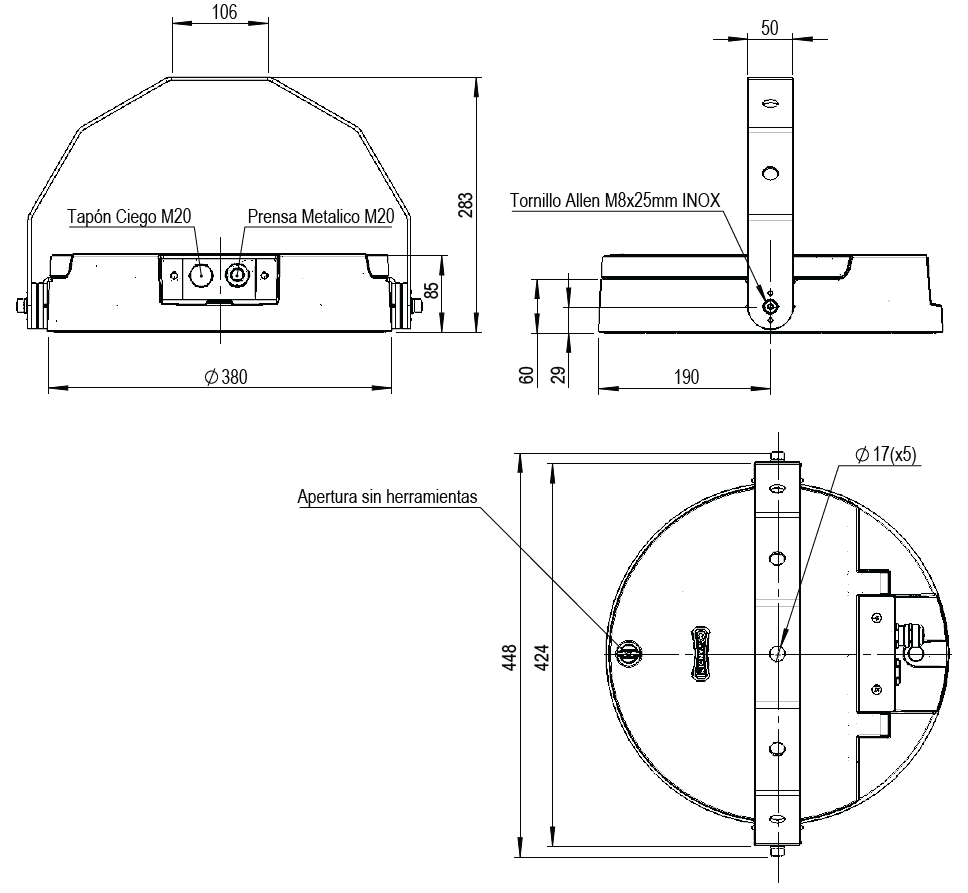

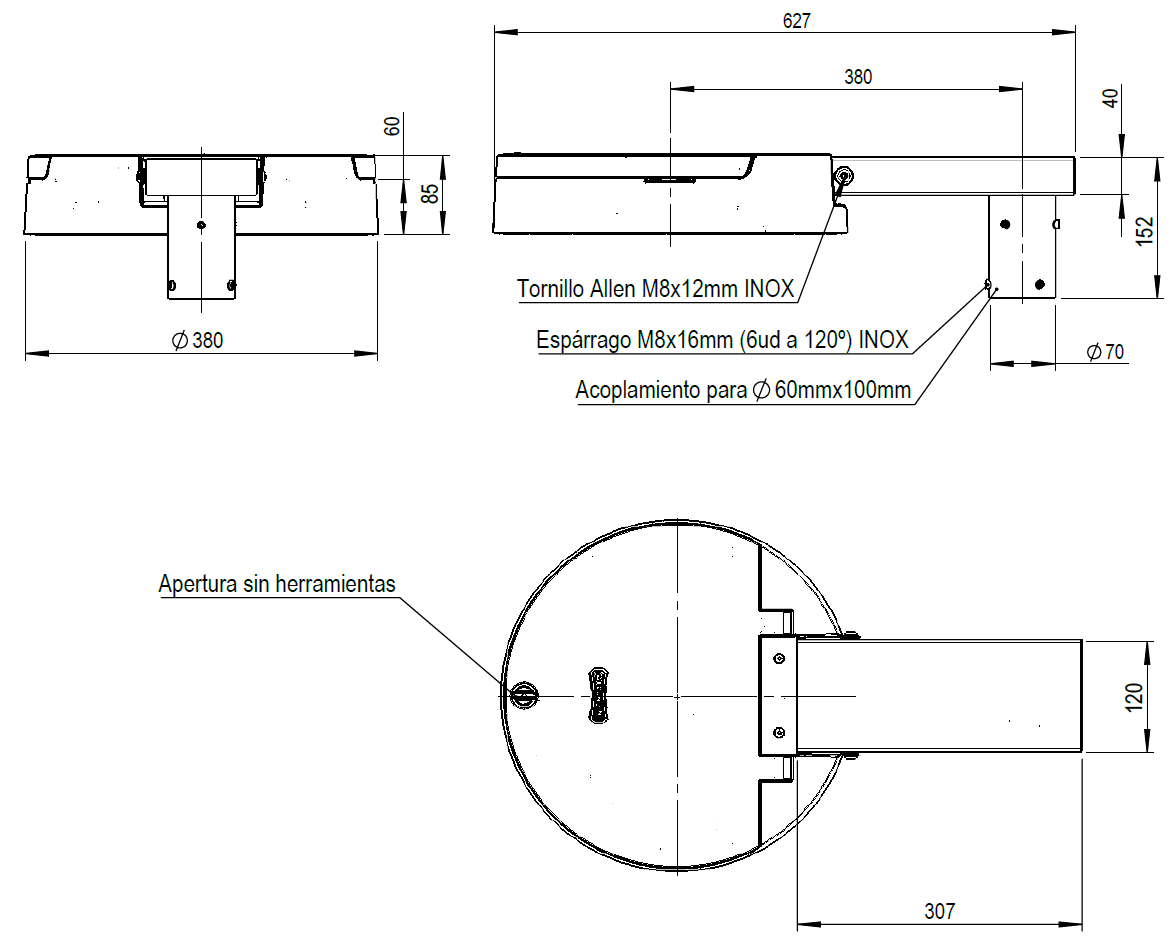

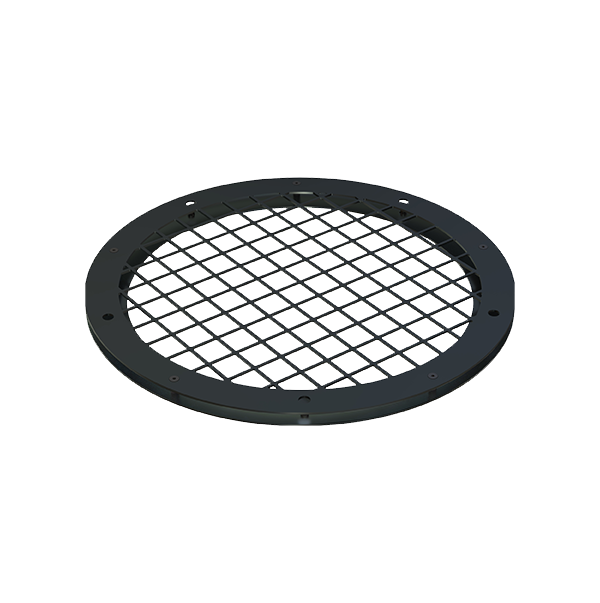

DIMENSIONS & ACCESSORIES

FM16-1

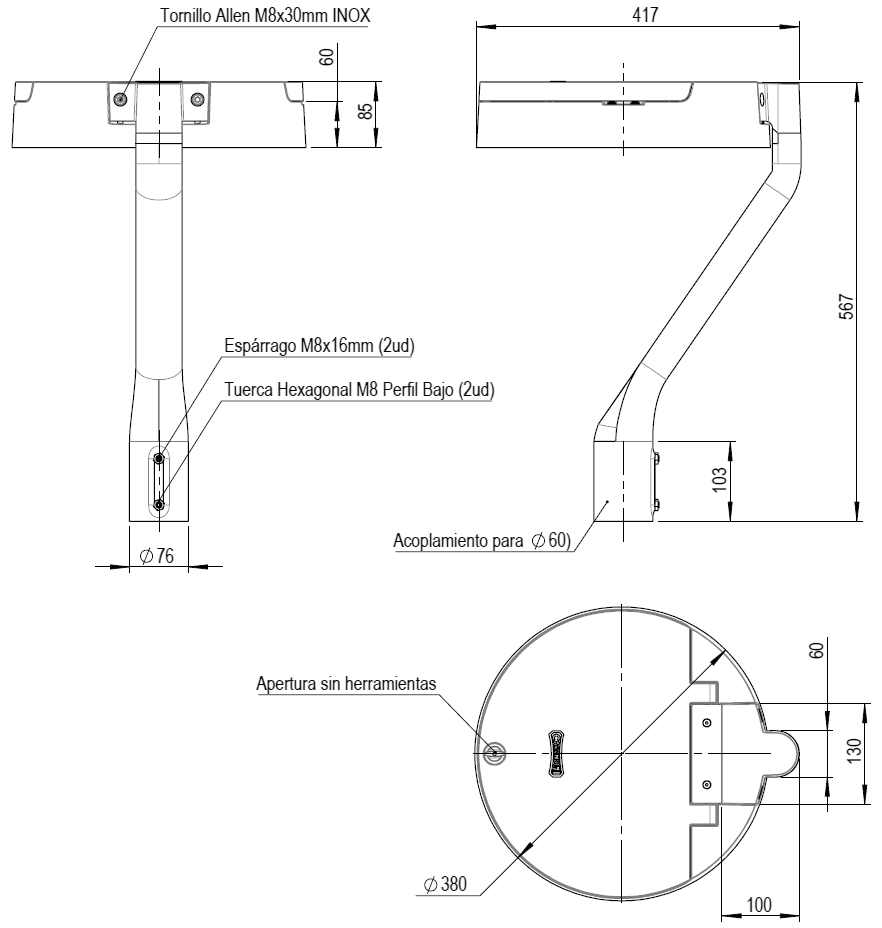

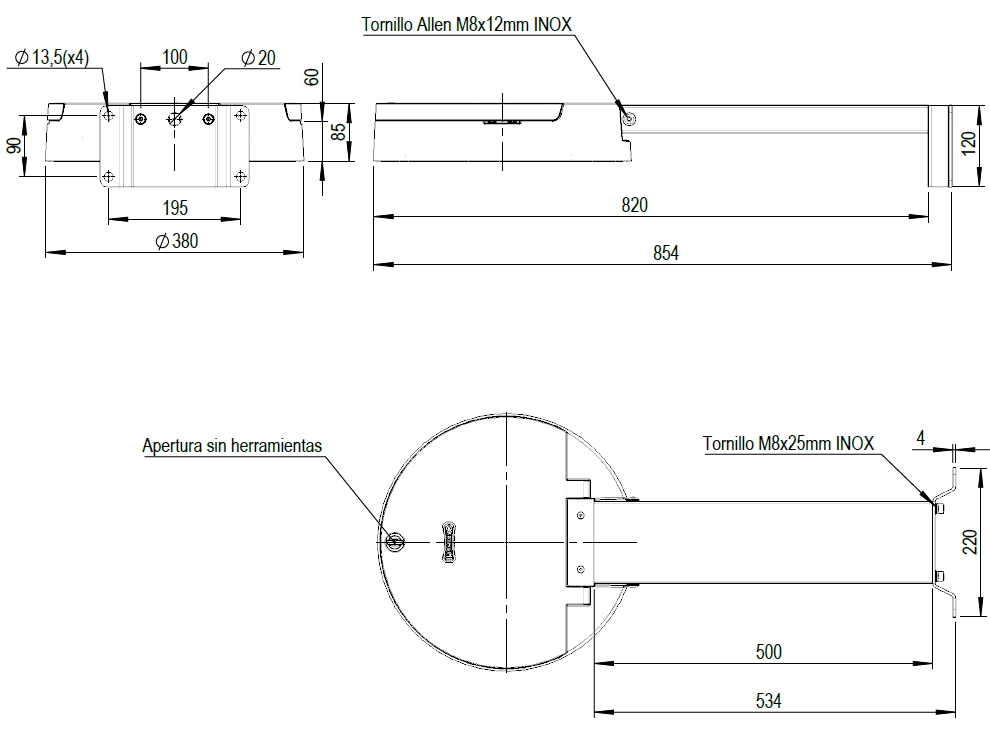

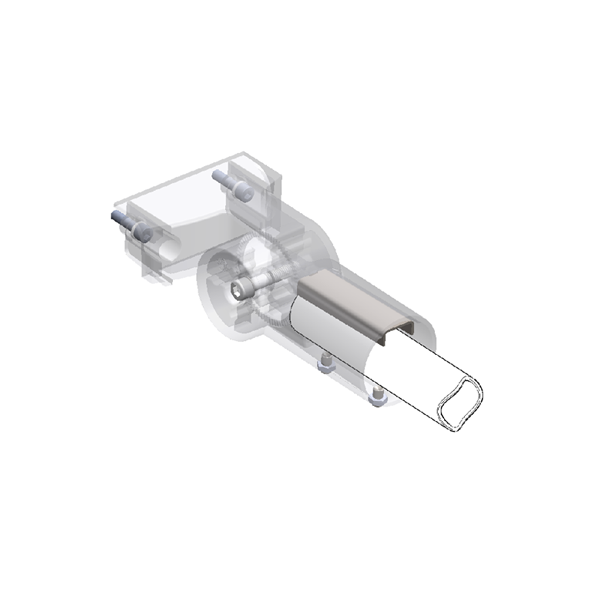

Coupling for wall or surface.

Accesorio NF60-1

NF60-1

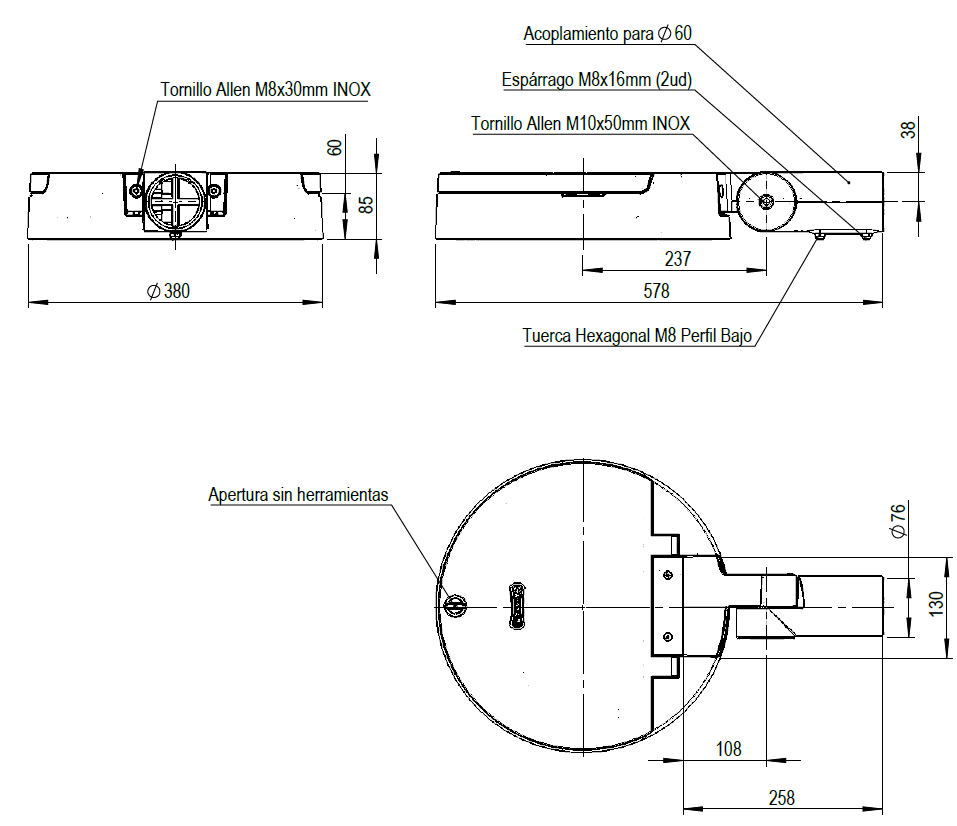

Cast iron coupling to fix 1 luminarie to a ø60 mm column.

Accesirio nf60-2

NF60-2
Cast iron coupling to fix 2 luminaries to a ø60 mm column.

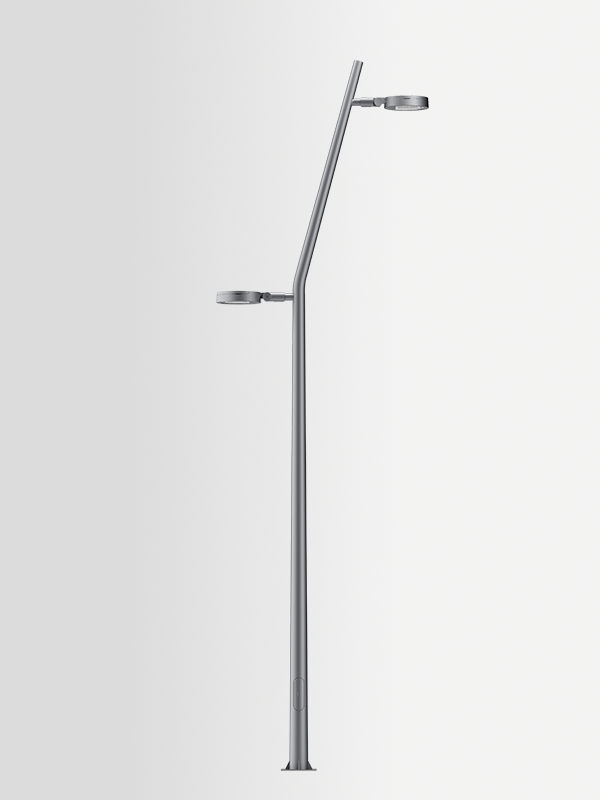

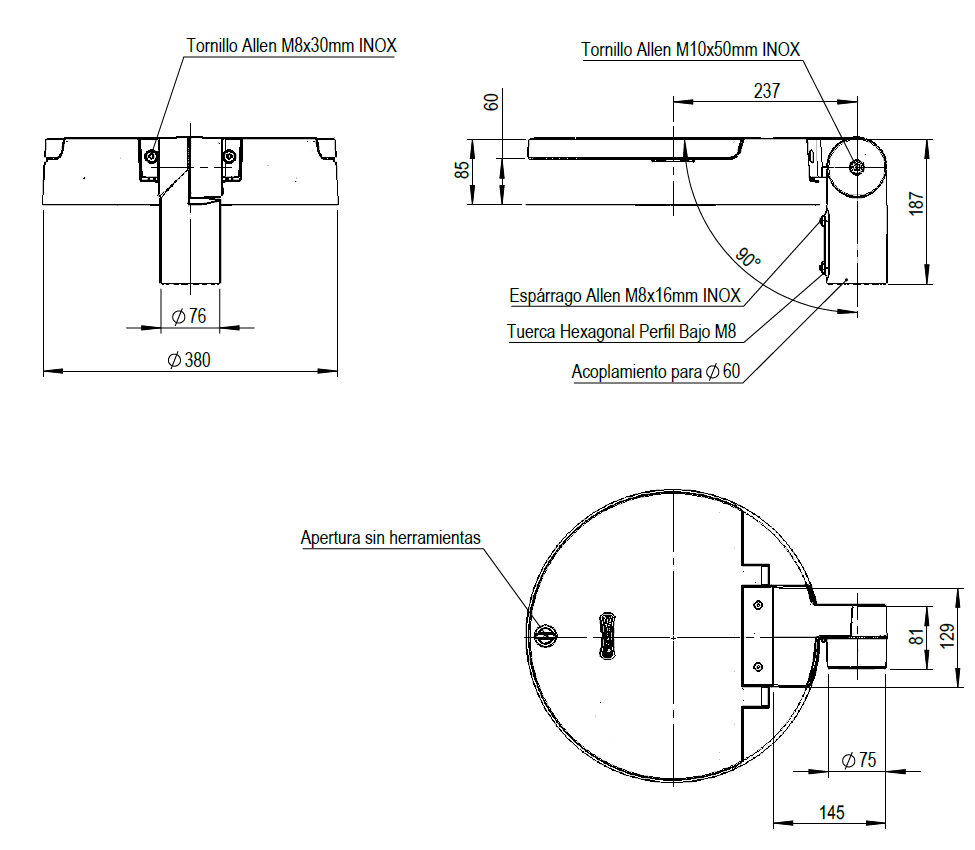

Soporte PT2

PT2
Support for 60mm column.

Cast iron knot to fix 1 luminaire.

Cast iron knot to fix 2 luminaires.

Top cap for column.

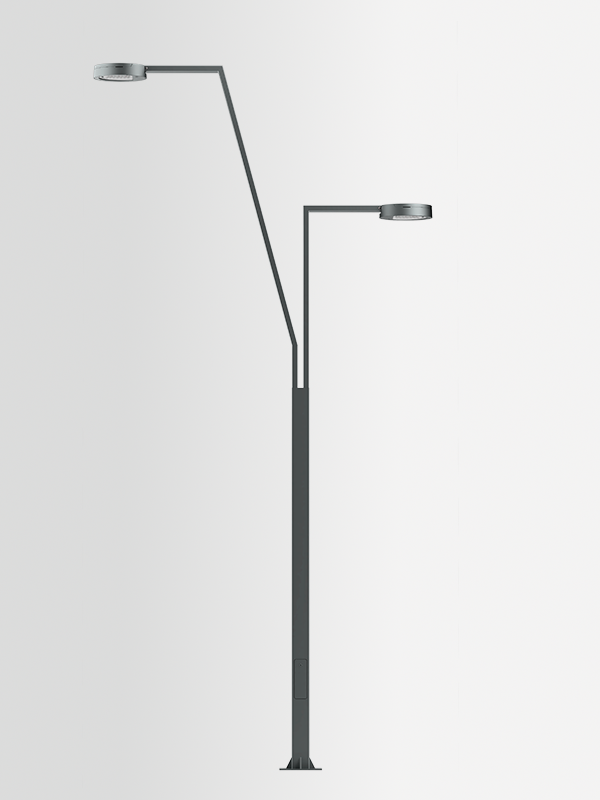

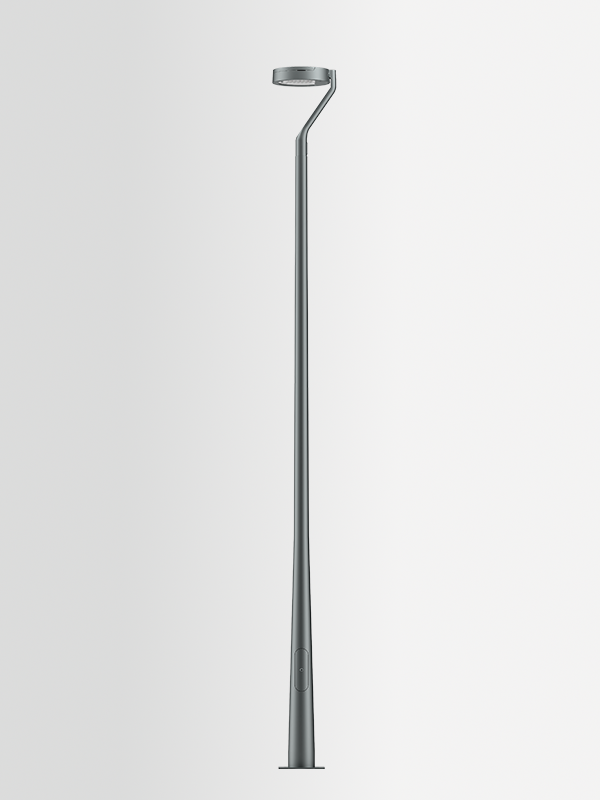

POINT OF LIGHT

Simple

H
(m)
D
(mm)
E
(mm)
Bolts
(inclued)

Weight

COLCCJV040H100EECPA715T

4 90 3 M18x400 40

COLCCJV050H100EECPA715T

5

100

3

M14x400

50

COLCCJV080H100EECPA715T 8

140

3 M16x500

80

Double H
(m)
D
(mm)
E
(mm)
Bolts (included) Weight

COLCCJV040H200EECPA715T

4 90 3 M18x500 40
COLCCJV050H200EECPA715T

5

100

3

M14x400

50

COLCCJV080H200EECPA715T 8 140 3 M16x400

8

Model

H
(m)
D
(mm)
E
(mm)
Bolts
(included)
Weight
COLNKJV040SP60EECPA715T 4 60 3 M14x400

40

Do you have a technical question?

RELATED PRODUCTS

#FFB33F

Prueba franja spin
