TECHNICAL SPECIFICATIONS

  • Cylindrical telescopic shaft pole with circular section.

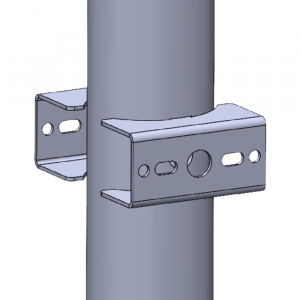

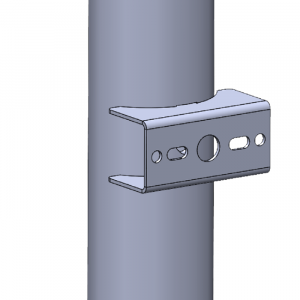

  • Custom-made bracket for one or two SPIN Gen3 SFX luminaires. Each luminaire requires a TR3 accessory (code 382830).
  • Manufactured in accordance with UNE EN 40-5.
  • Material: Carbon steel S 235 JR according to UNE EN 10219.
  • Finish: Hot-dip galvanised in accordance with UNE EN ISO 1461.
  • Finished with grey RAL 7015 textured paint (715T).
  • Door: Flush.
  • Base: Flush.
  • Special projection for bracket.
  • Special fixing for Spin with screws included.
  • Available heights: 4, 5 and 8 metres.

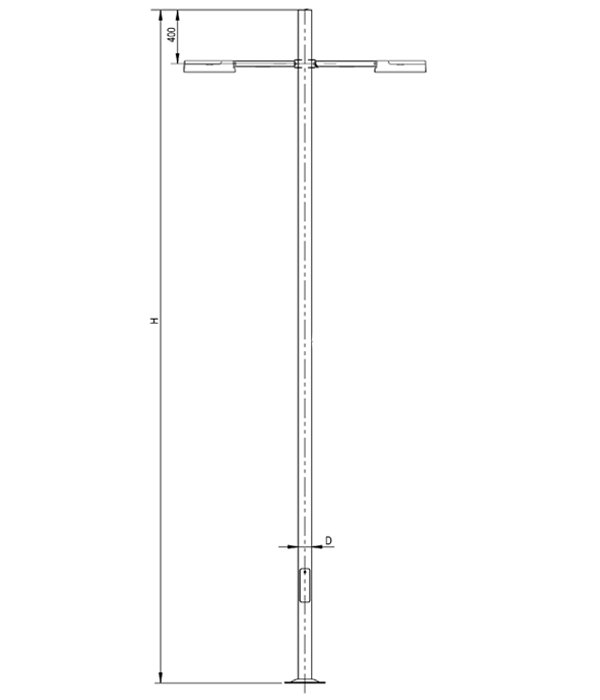

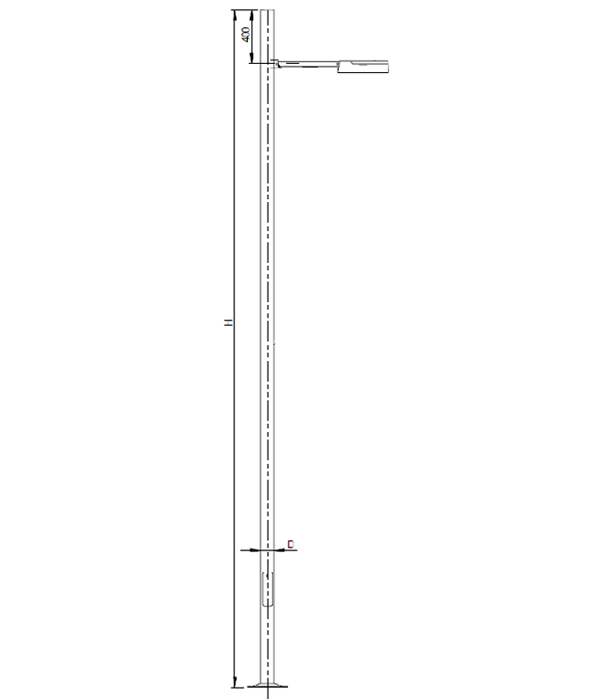

DIMENSIONS

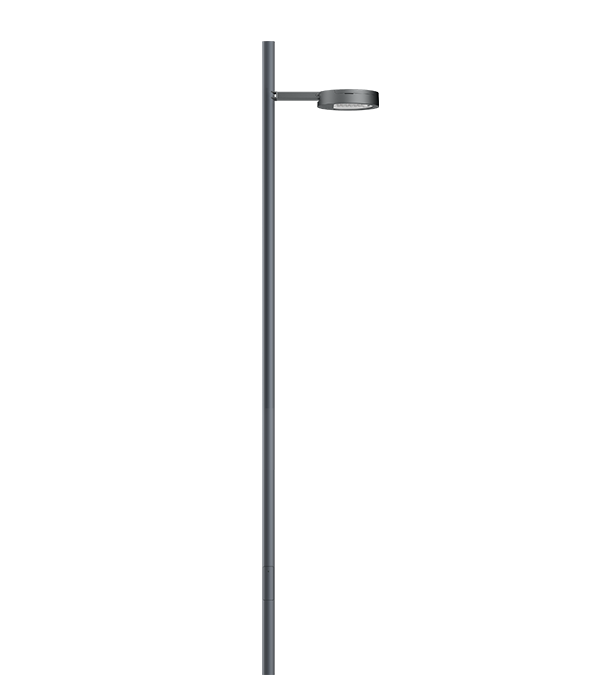

Cilíndrica Simple
Code H (m)
Height
 D (mm)
ø		 E (mm)
Thickness
 Bolts
(included)		 Weight
410093 COL2CSJV040H100EECPA715T 4 90 3 M14x400 40
410094 COL2CSJV050H100EECPA715T 5 100 3 M16x500 50
410095 COL2CSJV080H100EECPA715T 8 140 3 M18x500 80
Code H (m)
Height
 D (mm)
ø		 E (mm)
Thickness
 Bolts
(included)		 Weight
410096 COL2CSJV040H200EECPA715T 4 90 3 M14x400 40
410097 COL2CSJV050H200EECPA715T 5 100 3 M16x500 50
410098 COL2CSJV080H200EECPA715T 8 140 3 M18x500 80
