TECHNICAL SPECIFICATIONS

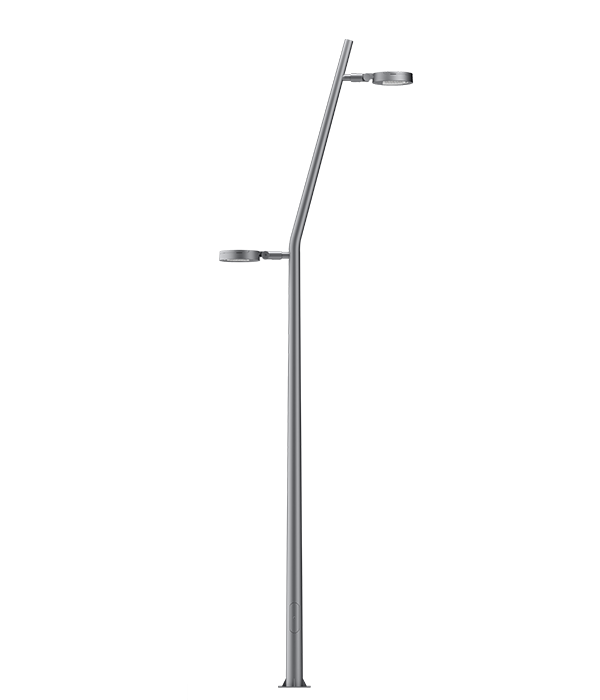

  • Irregular conical column with double arm for street lighting.
  • Arms: Compatible coupling for installing two Spin luminaires with SE2 fixation.
  • Material: Carbon steel S235JR or higher, according to UNE 37.501.71 standard.
  • Finish: Hot-dip galvanised by single immersion, after degreasing, pickling and fluxing treatments, achieving a minimum coating thickness of 65 microns, in accordance with UNE-EN 1461. Surface sanding and washing. Powder coating RAL 7015 (other finishes available on request).
  • Available heights: 6, 7 and 8 metres.

DIMENSIONS

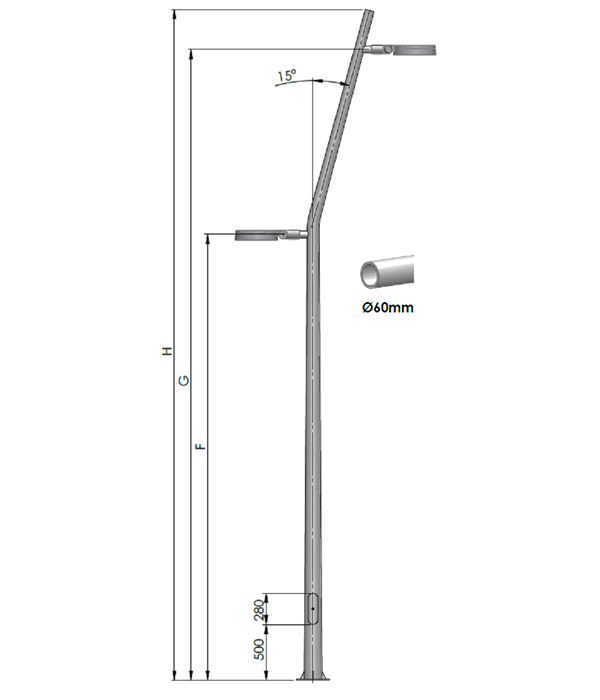

Code H (m) d (mm) D (mm) e (mm) p (mm) F (mm) G (mm)
height ø base ø top thickness door length length
411705 COLNVDS060H1SFXEECPA715T132 6.0 132 60/76 3–4 280×90 4000 5600
411707 COLNVDS070H1SFXEECPA715T144 7.0 144 60/76 3–4 280×90 5000 6600
411709 COLNVDS080H1SFXEECPA715T156 8.0 156 60/76 3–4 280×90 6000 7600
411706 COLNVDS060H1SFXEECPA715T148 6.0 148 60/76 3–4 280×90 4000 5600
411708 COLNVDS070H1SFXEECPA715T160 7.0 160 60/76 3–4 280×90 5000 6600
411710 COLNVDS080H1SFXEECPA715T172 8.0 172 60/76 3–4 280×90 6000 7600
