TECHNICAL SPECIFICATIONS

  • Double-arm column for street lighting, manufactured from carbon steel.
  • Arms: Custom-made coupling for the Spin SFX luminaire. Installation requires TR3 accessory (code 382830) for a 250 mm arm or TR5 accessory (code 382831) for a 500 mm arm.
  • Material: Carbon steel S235JR or higher, according to UNE 37.501.71 standard.
  • Finish: Hot-dip galvanised by single immersion, after degreasing, pickling and fluxing treatments, achieving a minimum coating thickness of 65 microns, in accordance with UNE-EN 1461. Surface sanding and washing. Powder coating RAL 7015 (other finishes available on request).
  • Available heights: 4, 5 and 6 metres.

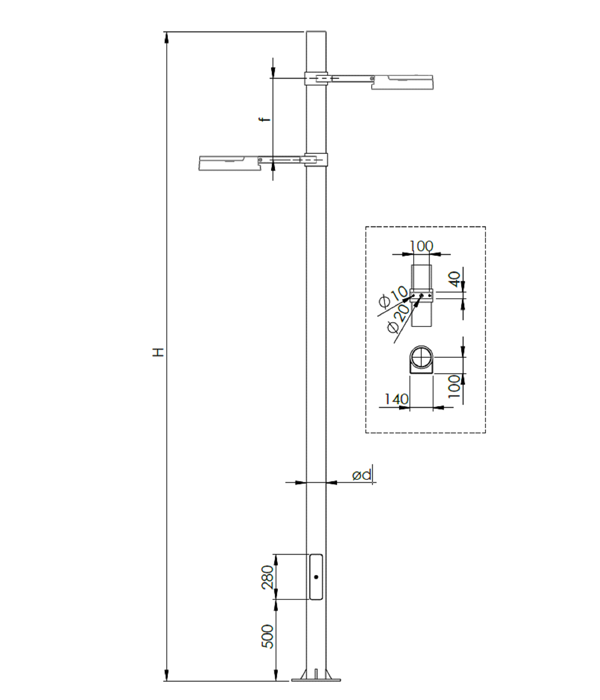

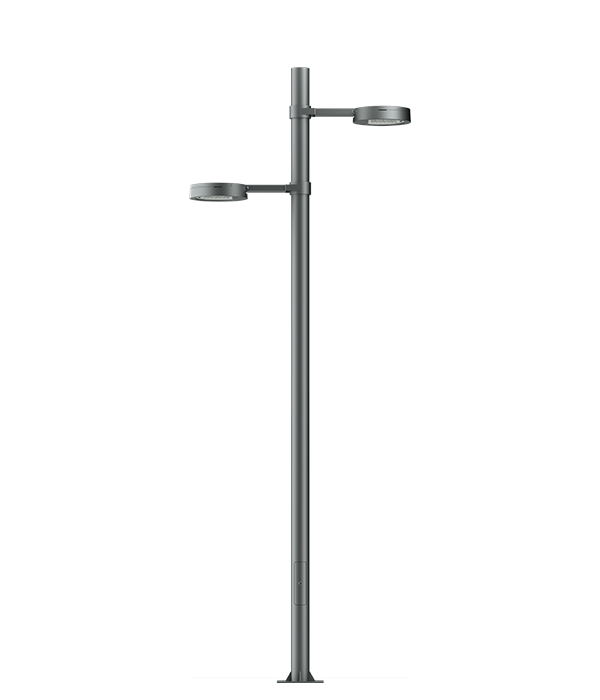

DIMENSIONS

Orvo
Code H (m) d (mm) e (mm) p (mm) f (mm)
height ø base thickness door length
411697 COLOVDS040H1SFXEECPA715T120 4.0 120 3–4 280×90 500
411698 COLOVDS050H1SFXEECPA715T120 5.0 120 3–4 280×90 500
411699 COLOVDS060H1SFXEECPA715T120 6.0 120 3–4 280×90 500
411700 COLOVDS040H1SFXEECPA715T100 4.0 100 3–4 280×90 500
411701 COLOVDS050H1SFXEECPA715T100 5.0 100 3–4 280×90 500
411702 COLOVDS060H1SFXEECPA715T100 6.0 100 3–4 280×90 500
