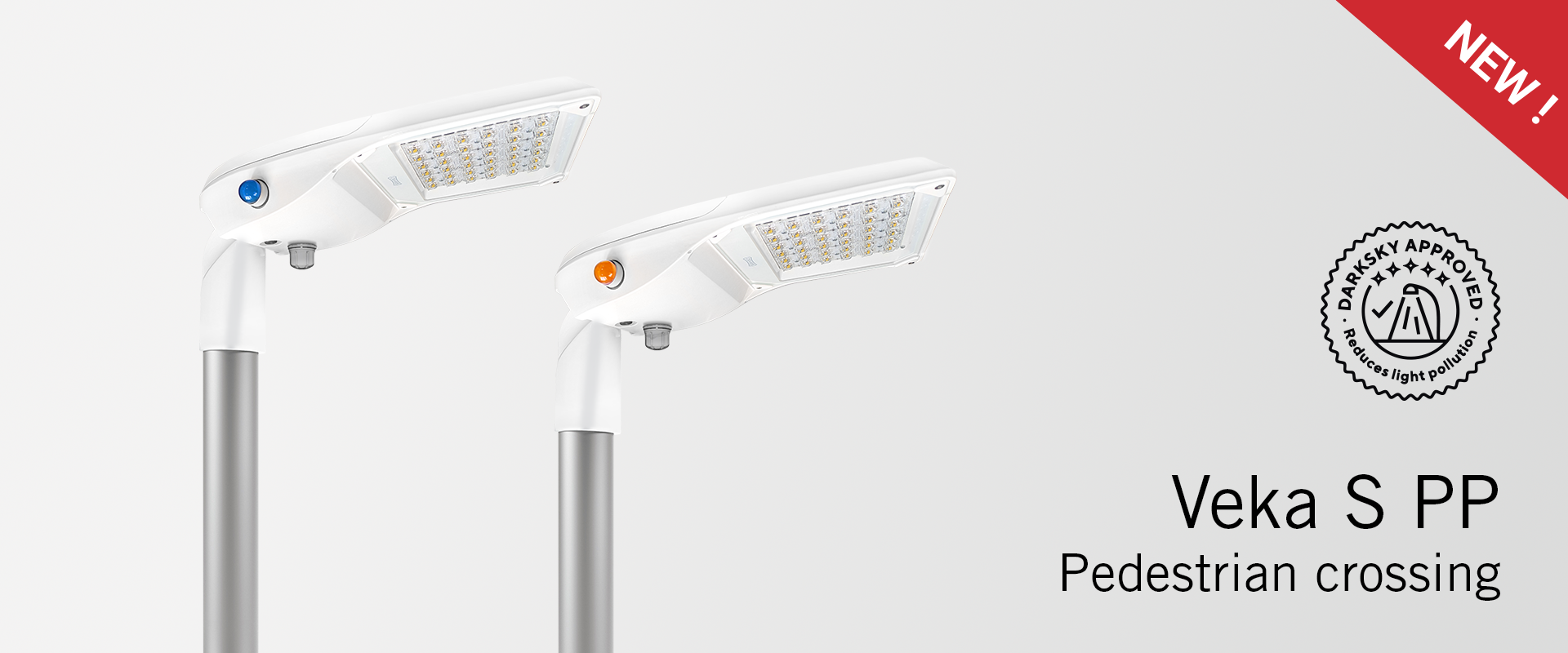

VEKA S PP

Pedestrian crossing

Veka S PP luminaire harmoniously blends into the road environment to offer lighting that attracts the attention of drivers. It boosts the horizontal and vertical field of vision of pedestrians while also incorporating a flashing orange light warning the presence of a pedestrian crossing.

TECHNICAL SPECIFICATIONS

Sustainability:

  • Valorisation 99,38%
  • Maximum carbon footprint per use: 0,026677 kg kW/h CO2.

CE mark:

  • Yes.

ENEC Certificate:

  • Yes.

RoHS-compliant:

  • Yes.

Testing standards:

  • LM 79-80 (all measurements at ISO17025 certified laboratory).

Dark-Sky Association certification:

  • ≤  3.000K not avaible for 4.000K.
  • Mechanical adjustament: max. + or- 15 degrees to allow leveling in the field.

Materiales:

  • Aluminum injected at high pressure EN AC-44100 with low copper content <0.1% (AISI304).
    It incorporates molded silicone gasket housed in the perimeter channel.
  • Closure tempered flat glass 5mm thick.
  • Polymethylmethacrylate PMMA optics.
  • Nuts outer and bolts stainless steel (AISI304).

Finish:

  • White polyester powder coat paint RAL 9016 Smooth Gloss.
  • Marine Finish (1.000h) (Optional).

Pressure compensation valve:

  • The luminaire has a pressure compensation valve that compensates for internal / external system pressure.

Watertightness and impact protection grade:

  • IP66
  • IK08

Installation and maintenance:

  • Opening system of the luminaire without tools.
  • Access to the driver from the top.

Weight with equipment:

  • 6 Kg.

Operating temperature:

  • Ta -40ºC to +50ºC.
    According to luminaire configuration.

Lifespan:

  • L90B10 100.000h of 25ºC.

Wind exposure area:

  • 0,04m².

Cables:

Built-in cables in all sizes, consult configurator.

Accessories:

Optional pre- or post-installation shielding for these luminaires

Luminaire performance:

  • 1,252 lm -14,750 lm
  • 12-112W
  • 168lm/W

LEDs:

  • 16, 24, 36 and 48 LEDs depending on the size of the luminaire.

LED color temperature:

    • 5,700K (Neutral White, nw).
    • 4,000K (Neutral White, nw).
    • 3,000K (Warm White, ww).
    • 2,700K (Warm White, ww).
    • 2,200K (Warm White, ww).
    • Optionally amber color temperature.

Index of reproduction chromatic (CRI):

  • CRI>70.
    Other CRI, consult.

ULOR:

  • Between 0,00% and 0,35%.

Surge protection:

  • Combined discharge voltage (1,2/50) 10 kV
  • Maximum discharge current (8/20) 10 kA
  • Maximum service voltage (L-N) 320 V
  • Maximum service voltage (L/N-GND) 400 V
  • Optional surge protection: 20kA, 20 kV

Electrical class:

  • Class I or Class II.

Harmonic distortion:

  • < 10%.

Power factor:

  • > 0,9.

Voltage / Frequency:

  • 220V – 240V / 50Hz – 60Hz.
  • 120V – 277V / 50Hz – 60Hz.

Equipment:

  • LED 1 level.
  • Adjustable LED in header.
  • Dimmable LED 1-10V.
  • Dimmable LED Dali Protocol.
  • Adjustable LED in header (pulses).
  • Dual level dimmable LED.
  • Adjustable LED Sensor Ready.

Autonomous regulation:

  • 50% of the 24: 00h at 6: 00h.
  • 60% of the 24: 00h at 6: 00h.
  • 70% of the 24: 00h at 6: 00h.
  • Programming according to client.

CLO regulation:

  • 70% luminous flux throughout the life of the luminaire.
  • 80% luminous flux throughout the life of the luminaire.
  • 90% luminous flux throughout the life of the luminaire.

Bases NEMA y Zhaga:

  • NEMA Socket 3 pin without / with cover IP66.
  • NEMA Socket 5 pin without / with cover IP66.
  • NEMA Socket 7 pin without / with cover IP66.
  • Zhaga base without/with cover IP66. *
  • Zhaga Socket at the bottom of the luminaire with IP66 cover.*
  • Zhaga Socket at the bottom and top of the luminaire with IP66 cover.*

* Depending on the version of the luminaire.

Photocells:

  • Photocell for NEMA 3, 5 and 7 pin base (20 lux)
  • Photocell for upper Zhaga base (20 lux)
  • Motion sensor for lower Zhaga base.*
  • Photocell for upper Zhaga base (20 lux) and motion sensor for lower Zhaga base.*

* Depending on the version of the luminaire.

Smart Systems:
Veka versions are compatible with:

  • Controlux One.
  • Controlux Basic.
CE
RoHS
iecee
aenor
Retilap
ENEC (2)
MARRUECOS
canarias
arrêté
dark sky
india

THE DETAILS MAKE THE DIFFERENCE

Veka presents a simple and elegant aesthetic.

Opening system without tools designed by Carandini.

Pressure compensation valve.

WE SHAPE THE LIGHT

We not only design luminaires, we shape the light and create pleasant environments for people.

Fotometría Veka - PCE1-

PCE1

Fotometría VEKA - PCE2-

PCE2

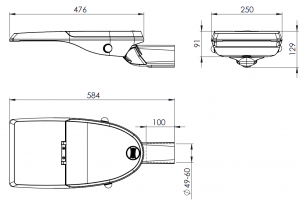

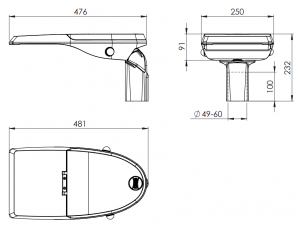

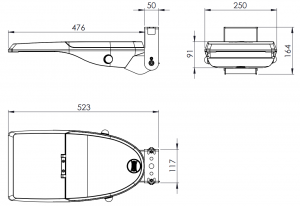

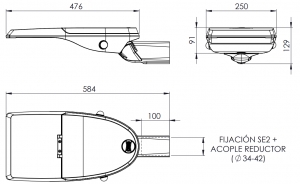

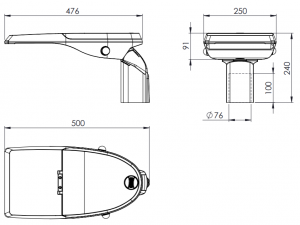

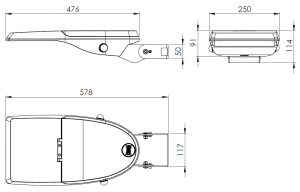

DIMENSIONS & ACCESSORIES

Applications

Pedastrian crossing
