TECHNICAL SPECIFICATIONS

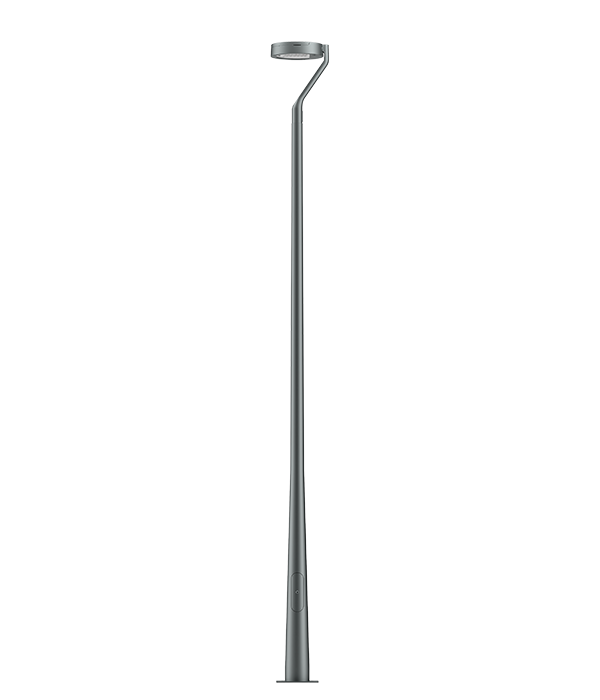

  • Irregular tapered base column with cylindrical shaft for street lighting.
  • Arms: Compatible coupling for installing a Spin luminaire with VB1 fixation.
  • Material: Carbon steel S235JR or higher, according to UNE 37.501.71 standard.
  • Finish: Hot-dip galvanised by single immersion, after degreasing, pickling and fluxing treatments, achieving a minimum coating thickness of 65 microns, in accordance with UNE-EN 1461. Surface sanding and washing. Powder coating RAL 7015 (other finishes available on request).
  • Available heights: 4 and 5 metres.

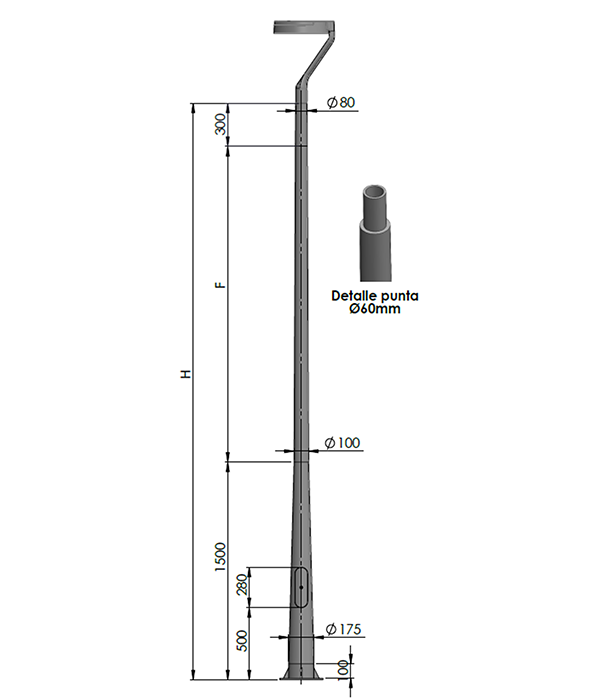

DIMENSIONS

Vicus
Code H (m) d (mm) D (mm) e (mm) p (mm) F (mm)
height ø base ø top thickness door length
411703 COLVCDS040H1SFXEECPA715T175 4.0 175 80 3–4 280×90 3200
411704 COLVCDS050H1SFXEECPA715T175 5.0 175 80 3–4 280×90 4200
