ATHLOS

Athlos is the new high performance and precision Carandini floodlight designed for sports fields and large spaces where lighting at high altitudes is required.

Its easy installation, its robustness, with state-of-the-art LED technology and the optical distributions that it incorporates make it a high quality and versatile solution.

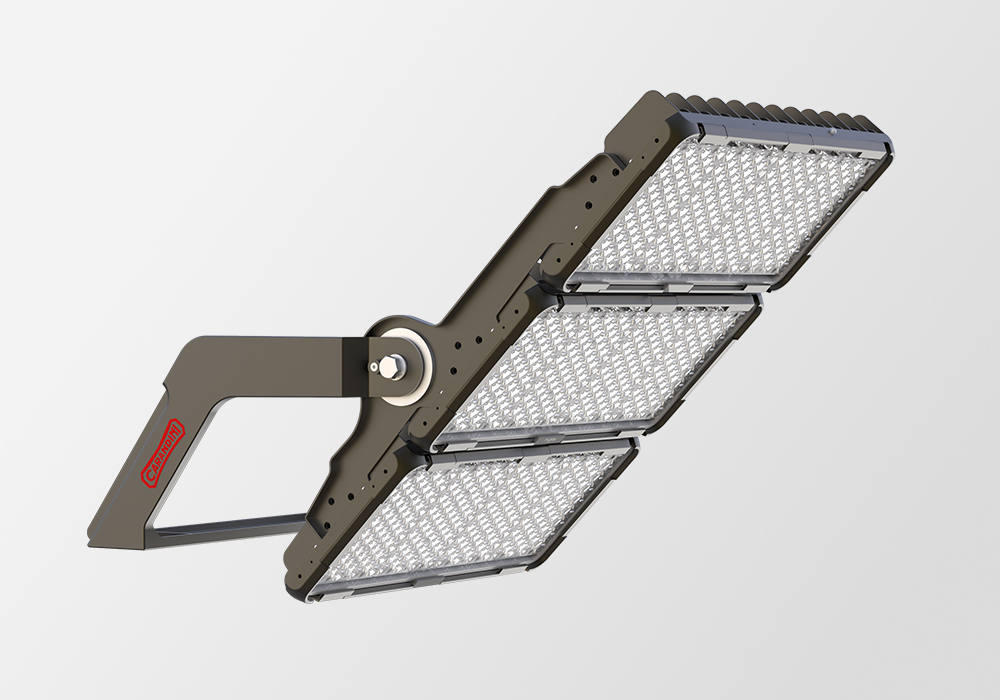

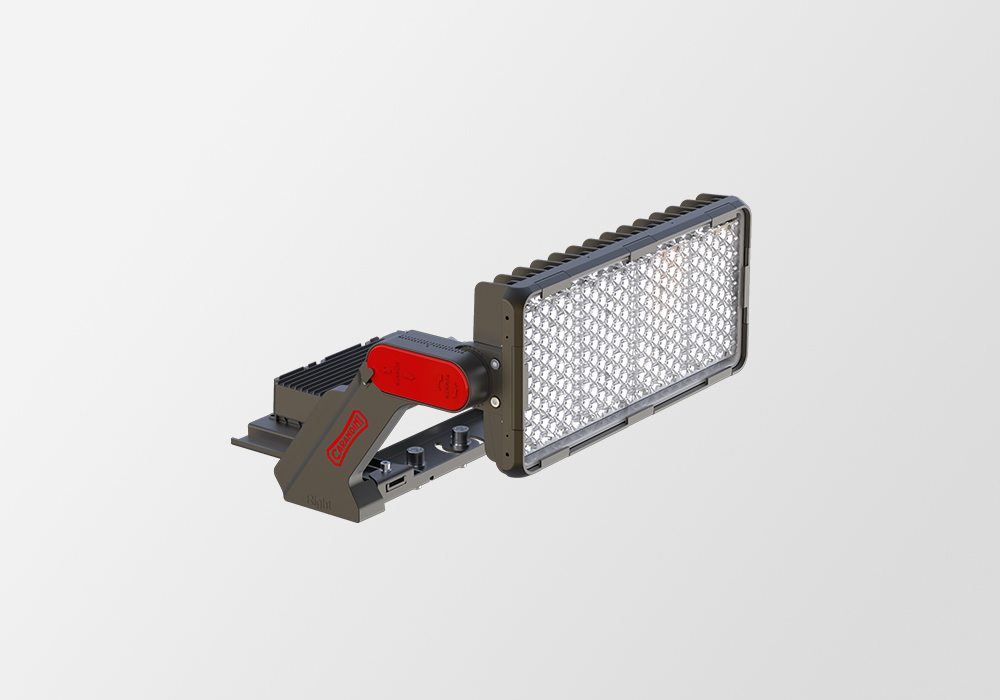

Athlos Version

1 Module

62.603 lm –  91.624 lm
600W

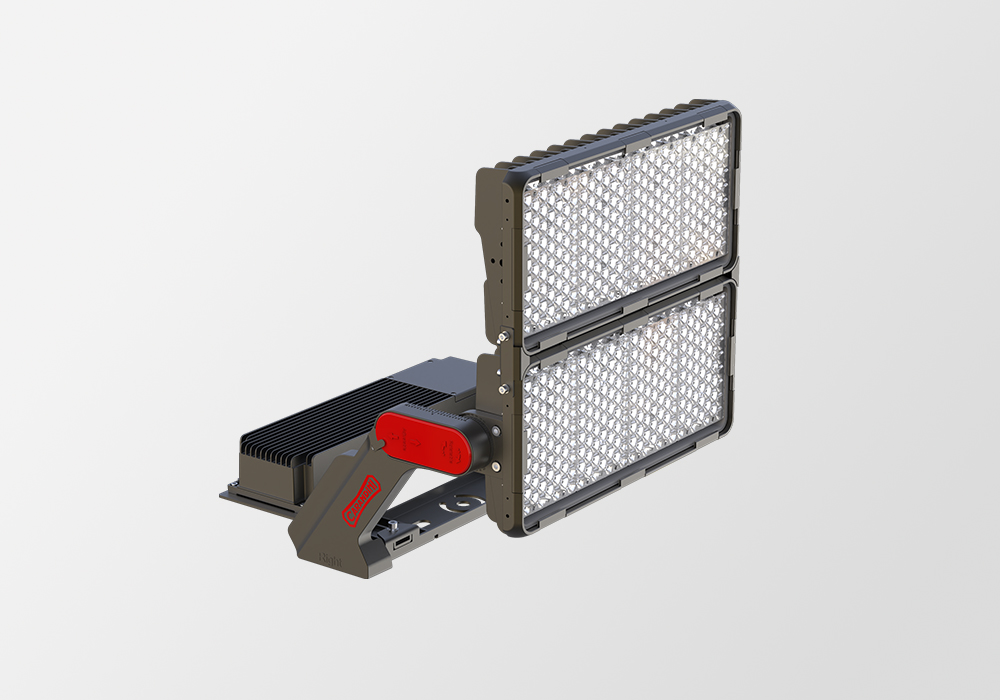

 2 Modules

127.419 lm –  187.237 lm
1.200 W

TECHNICAL SPECIFICATIONS

Materials:

  • Body and fork aluminum injected at high pressure EN AC-44100 with low copper content <0.1%.
  • Nuts outer and bolts stainless steel (AISI304).

Finish:

  • RAL 7022 bronce color.

Watertightness and impact protection grade:

  • IP66/IP67.
  • IK08.

Installation and maintenance:

  • Driver installed behind floodlight in IP66 box.
  • Control gear box can be supplied separate from floodlight for separate luminaire assembly, at a distance of 20 m. Over 20 m, upon request.
  • The cable from the control gear to the luminaire includes a metallic protective mesh, only when the control gear box is installed at the back of the luminaire. If the box is not separate from the floodlight, extra cable is not supplied as standard and has no metallic protective mesh.

Weight with equipment:

  • Athlos 1 module: 18 Kg
  • Athlos 2 modules: 36 Kg

Operating temperature:

  • Ta -40ºC to +50ºC.
    According to luminaire configuration.

Lifespan:

  • L90B10 100,000h of 25ºC.

Luminaire performance:

  • 1 Module:
    62.603 lm –  91.624 lm
    600W
    156lm/W
  • 2 Modules:
    127.419 lm –  187.237 lm
    1,200W
    156lm/W

LEDs:
Incorporate:

  • 240, 480 LEDs (only with SCE2).
  • 816, 1632 LEDs (only with SCE3, SCE4, SCE5, SCM2)

LED color temperature:

  • 5.700K (Neutral White, nw).
  • 5.000K (Neutral White, nw).
  • 4,000K (Neutral White, nw).
  • 3,000K (Warm White, ww).

Index of reproduction chromatic (CRI):

  • CRI>70.
    Other CRI, consult.

ULOR:

  • 0,00% – 0,35%.

Overvoltage  protection:

  • Overvoltage protection 10 kV – 10 kA.
  • Optional 20 kV – 20 kA.

Electrical class:

  • Class I.

Harmonic distortion:

  • <10%.

Power factor:

  • > 0,95.

Input voltage:

  • 240V – 480V / 50Hz – 60Hz.
  • Optional 100V – 277V.

Devices:

  • Adjustable LED Protocol DALI.
  • Adjustable LED Protocol 0-10 V.

THE DETAILS MAKE THE DIFERENCE

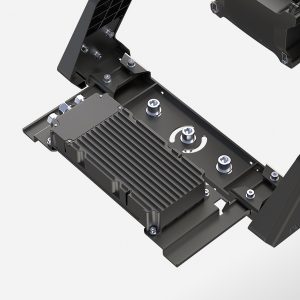

Driver installed on the back of de  foodlight, in a IP66 box.

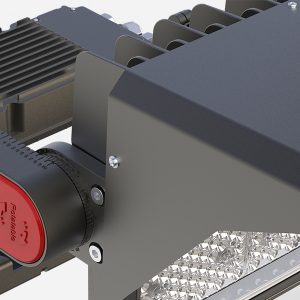

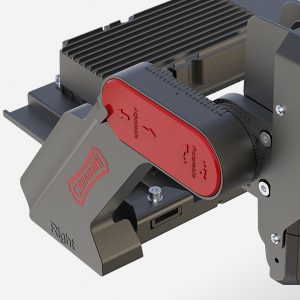

The foodlight can be adjusted up to 270º.

Athlos design maximizes management of foodlight heat.

Optionally it can include a parallelumen to contain the light.

WE SHAPE THE LIGHT

We not only design luminaires, we shape the light and create pleasant environments for people.

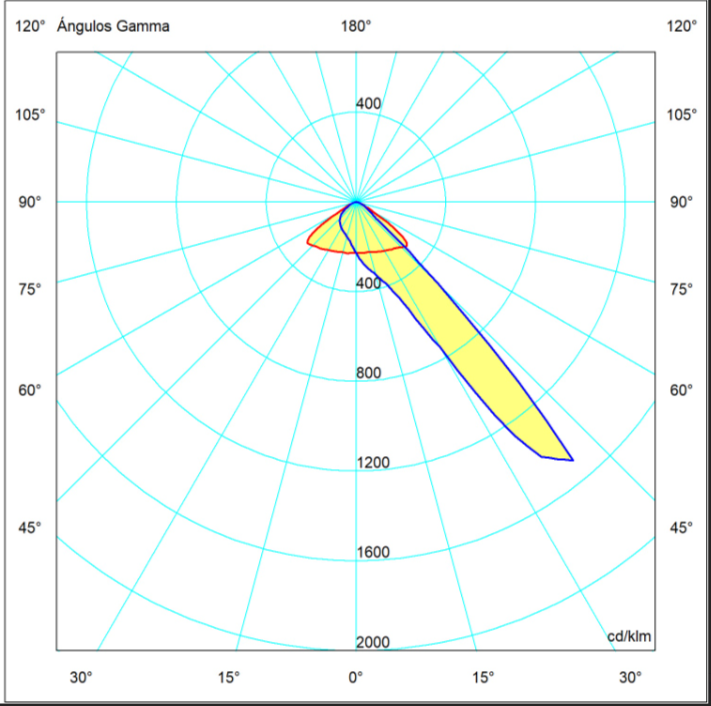

Fotometría athlos_SCE2

SCE2

Fotometría athlos_SCE3

SCE3

Fotometría athlos_SCE4

SCE4

Fotometría athlos_SCE4

SCE4

Fotometría athlos_SCE5

SCE5

ACE2

ACE2

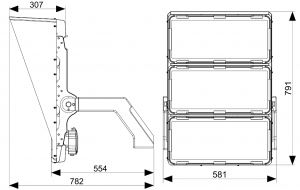

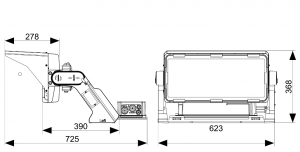

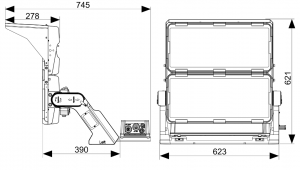

DIMENSION

Optionally it can include a parallelumen to contain the light.

Optionally it can include a parallelumen to contain the light.

Applications

Soccer fields and Tennis courts

Ports and Airports

Football fields

Parkings
