LINEAR SYSTEM

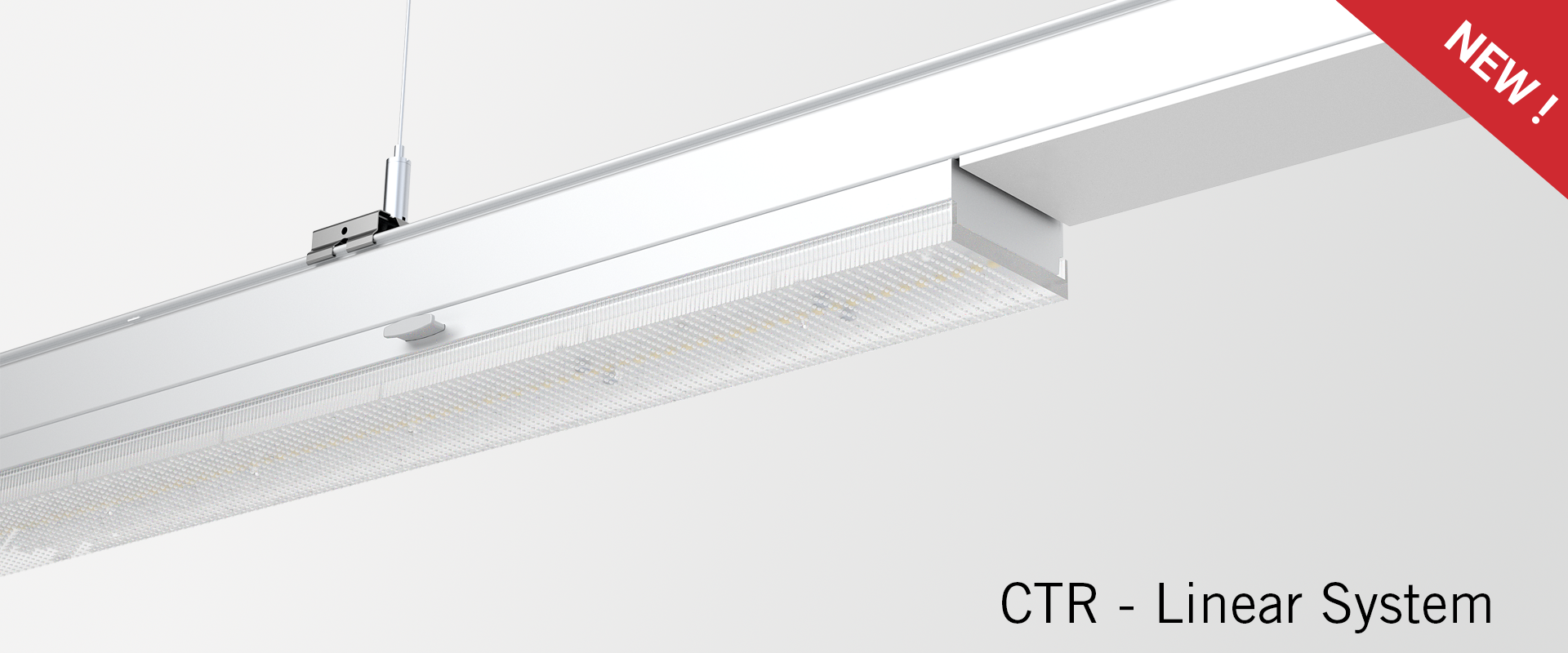

The Carandini linear system consists of an aluminum profile that acts as an electric rail to which luminaires are incorporated through a system of connectors.

It is a system of great flexibility since the rail is fixed throughout the entire installation and the luminaires can be attached at any point of it, efficiently illuminating and with a great uniformity the areas that are necessary.

APPLICATIONS

Industrial Ships

Warehouses

Hallways and Shelves

Logistics Areas

LINEAR SYSTEM

Linear System
6.000 lm to 17.000 lm

TECHNICAL SPECIFICATION

Materials:

  • Rail and profile of the silver gray aluminum extrusion luminaire.
  • Polymethylmethacrylate PMMA optics.
  • Nuts outer and bolts stainless steel (AISI304).

Mounting system:

The linear system consists of a support rail in which the luminaire modules are coupled to form the complete lighting system.

Electrical class:

  • Class I or Class II.

Wiring system:

  • The rail integrates 7-wire transverse wiring of 2.5mm2 section. In the same way as the rails, the cables are joined along the system by electrical connectors (without the need to use tools).

Fixing systems:

  • Fixation to ceiling by suspension. Cables available from 3 to 7m in length.
  • It is recommended to place 2 fixings every 3m of lane. In the case of very long installations, 2 fixings should be placed every 3m and one at the beginning and end of the lane.

Watertightness and impact protection grade:

  • IP20.
    Optionally it can be supplied in IP54 / IP65 version.

Weight with equipment:

  • 3m wired rail: 4,65 Kg.
  • Luminaire of 1,445m: 2,7 Kg.

Operating temperature:

  • Ta -35ºC to +40ºC.
    According to luminaire configuration.

Lifespan::

  • L80B50 70,000 h of 25ºC.

Luminaire performance:

  • 6,000 lm up to 17,000 lm.

Thermal Control:

  • Thermal dissipation according to the three principles of heat transfer; conduction, convection and radiation via the ribs in the frame. The gear is ventilated thanks to natural convection in the gear compartment.

LED color temperature:

  • 4,000K (Neutral White, nw).
  • Optionally amber color temperature.

Index of reproduction chromatic (CRI):

  • CRI>80.

THE DETAILS MAKE THE DIFERENCE

The linear system consists of a support rail in which the luminaire modules are coupled to form the complete lighting system.

The rail integrates 7-wire transverse wiring of 2.5mm2 section.

Fixation to ceiling by suspension.

WE SHAPE THE LIGHT

We not only design luminaires, we shape the light and create pleasant environments for people.

CTR SWD-D 143D60L6R8 16.31.01.17

L9

CTR SWD-D 143D90L6R8 40.23.03.17

L6

CTR SWD-D 143D40L6R8 26.12.08.16

L3
