TECHNICAL SPECIFICATIONS

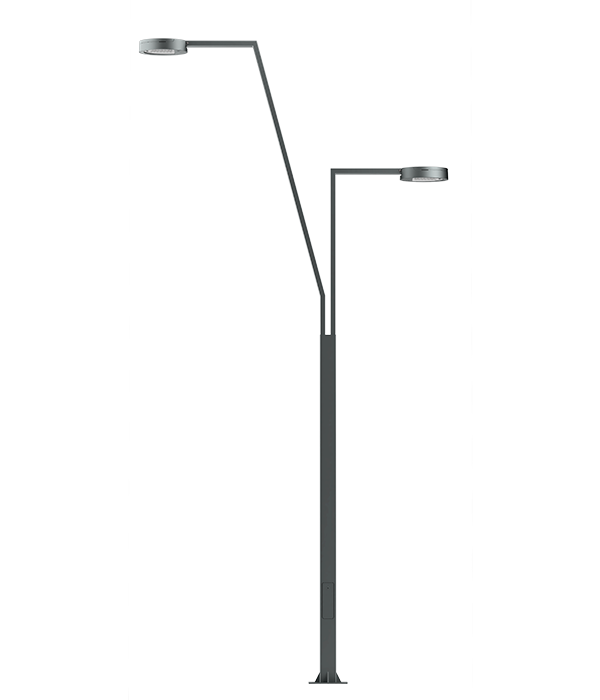

  • Rectangular double-arm column with square-section shaft.

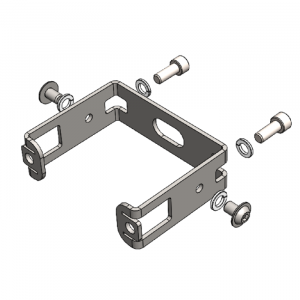

  • Arms: Custom-made coupling for two Spin SFX luminaires. Requires two HT1 accessories (code 383075).
  • Material: Carbon steel S235JR or higher, according to UNE 37.501.71 standard.
  • Finish: Hot-dip galvanised by single immersion, after degreasing, pickling and fluxing treatments, achieving a minimum coating thickness of 65 microns, in accordance with UNE-EN 1461. Surface sanding and washing. Powder coating RAL 7015 (other finishes available on request).
  • Available heights: 5, 6, 7 and 8 metres.

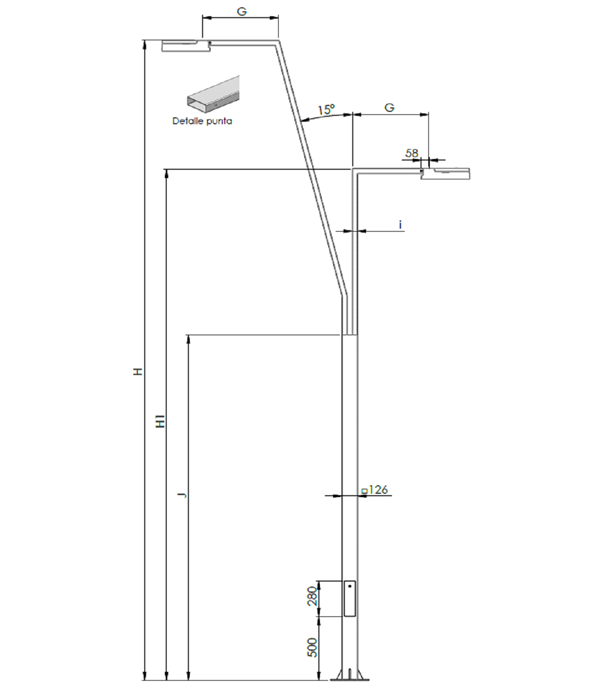

DIMENSIONS

Nexis
Code H (m) H1 i (mm) e (mm) p (mm) G (mm) J (mm)
    height height top thickness door length length
411693 COLNXDS050H1SFXEECPA715T120 5.0 4.0 120 × 40 3–4 280×90 500–600 2700
411694 COLNXDS060H1SFXEECPA715T120 6.0 5.0 120 × 40 3–4 280×90 500–600 3700
411695 COLNXDS070H1SFXEECPA715T120 7.0 6.0 120 × 40 3–4 280×90 500–600 4700
411696 COLNXDS080H1SFXEECPA715T120 8.0 7.0 120 × 40 3–4 280×90 500–600 5700
